Carbon Steel Forged Fittings

Carbon steel forged fittings are widely used in industrial piping systems for connecting, branching, reducing, or changing the direction of pipelines. Manufactured through the forging process, these fittings are stronger, tougher, and more reliable than cast or machined fittings. They are designed to withstand high pressure, high temperature, and demanding service conditions, which makes them suitable for critical applications in oil and gas, petrochemicals, refineries, power plants, and shipbuilding industries.

Composition and Grades

Carbon steel forged fittings are produced in different grades, each designed to meet specific mechanical and chemical requirements. The most commonly used grades include ASTM A105, ASTM A350 LF2, and ASTM A694.

• ♦  ASTM A105 forged fittings are manufactured from carbon steel with a maximum carbon content of around 0.35%, silicon between 0.10–0.35%, manganese between 0.60–1.05%, and minor amounts of molybdenum, phosphorus, sulfur, nickel, chromium, vanadium, and copper. This balanced chemistry ensures high strength, toughness, and weldability, making A105 the most widely used grade for ambient and elevated temperature services.

• ♦  ASTM A350 LF2 forged fittings are low-temperature carbon steel fittings with a maximum carbon content of 0.30%, silicon between 0.15–0.30%, manganese between 0.60–1.35%, and controlled amounts of sulfur, phosphorus, and vanadium. With minimal nickel and chromium, these fittings offer excellent impact toughness at sub-zero temperatures, making them ideal for cryogenic and low-temperature piping applications.

• ♦  ASTM A694 forged fittings are designed for high-pressure transmission service, such as pipelines transporting oil, gas, and petrochemical products. They contain controlled levels of carbon, manganese up to 1.60%, silicon between 0.15–0.35%, and very low phosphorus and sulfur content (≤0.025%). This composition provides superior strength, durability, and resistance to failure under high-stress conditions.

Mechanical Properties

The mechanical performance of carbon steel forged fittings depends on the grade, and each is designed for specific applications:

• ♦  ASTM A105 fittings deliver a minimum tensile strength of 485 MPa, yield strength of 250 MPa, and elongation of about 30%, ensuring a strong yet ductile product suitable for high-temperature service.

• ♦  ASTM A350 LF2 fittings provide tensile strength between 485–655 MPa, yield strength of 250 MPa, and elongation of around 22%, offering excellent ductility and toughness in low-temperature environments.

• ♦  ASTM A694 fittings are classified into several grades such as F42, F46, F48, F50, F52, F56, F60, F65, and F70, each offering progressively higher mechanical strength. For example, Grade F42 has a minimum tensile strength of 415 MPa and yield strength of 290 MPa, whereas Grade F70 offers a minimum tensile strength of 565 MPa and yield strength of 485 MPa. All grades typically have elongation values between 18–20%, ensuring a balance of strength and ductility for high-pressure pipeline service.

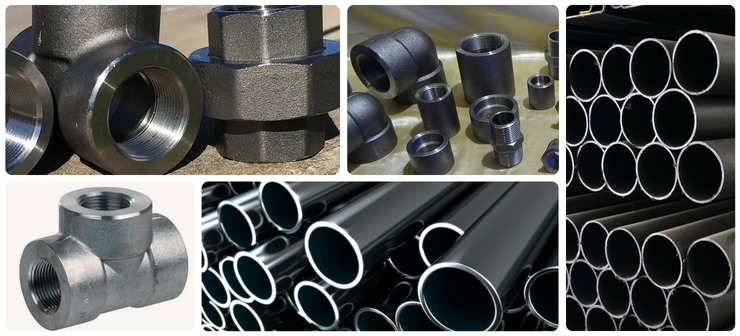

Types of Carbon Steel Forged Fittings

Carbon steel forged fittings are available in a variety of types to suit different piping requirements:

• ♦  Forged Elbows (45° & 90°) – Used to change the direction of flow in the pipeline.

• ♦  Forged Tees (Equal & Reducing) – Allow branching of pipelines.

• ♦  Forged Couplings (Full & Half) – Used for connecting two pipes.

• ♦  Forged Unions – Enable easy disassembly of pipelines for maintenance.

• ♦  Forged Caps & Plugs – Used to block off or seal the ends of pipes.

• ♦  Forged Crosses – Facilitate four-way connections in a piping system.

These fittings are typically manufactured in socket weld and threaded designs, making them suitable for high-pressure small-diameter pipelines.

Applications of Carbon Steel Forged Fittings

Thanks to their durability and ability to withstand high stress, carbon steel forged fittings are used in a wide range of industries. The oil and gas industry employs them in refineries, drilling rigs, and offshore platforms. In the chemical and petrochemical sector, they are used in processing plants where high-pressure fluid handling is essential. The power generation industry uses them in boilers, heat exchangers, and steam systems, while the shipbuilding and marine industry relies on them for robust piping connections in harsh marine environments.

Benefits of Carbon Steel Forged Fittings

• ♦  High strength and toughness, suitable for high-pressure and high-temperature conditions

• ♦  Durability and long service life, even in harsh industrial environments

• ♦  Versatility, available in multiple types, sizes, and pressure ratings

• ♦  Cost-effectiveness compared to alloy steel or stainless steel forged fittings

• ♦  Excellent machinability and weldability, making fabrication easier

• ♦  Reliable leak-proof connections for critical pipeline systems

Conclusion

Carbon steel forged fittings are one of the most reliable and cost-effective solutions for high-pressure and high-temperature piping systems. With grades like ASTM A105, A350 LF2, and A694, they provide a wide range of mechanical properties to suit applications from ambient conditions to sub-zero temperatures and extreme pressure environments. Their strength, durability, and versatility make them indispensable in oil and gas, petrochemical, power generation, and marine industries.

For industries seeking safe, durable, and economical forged fittings, carbon steel forged fittings remain the preferred choice worldwide.
