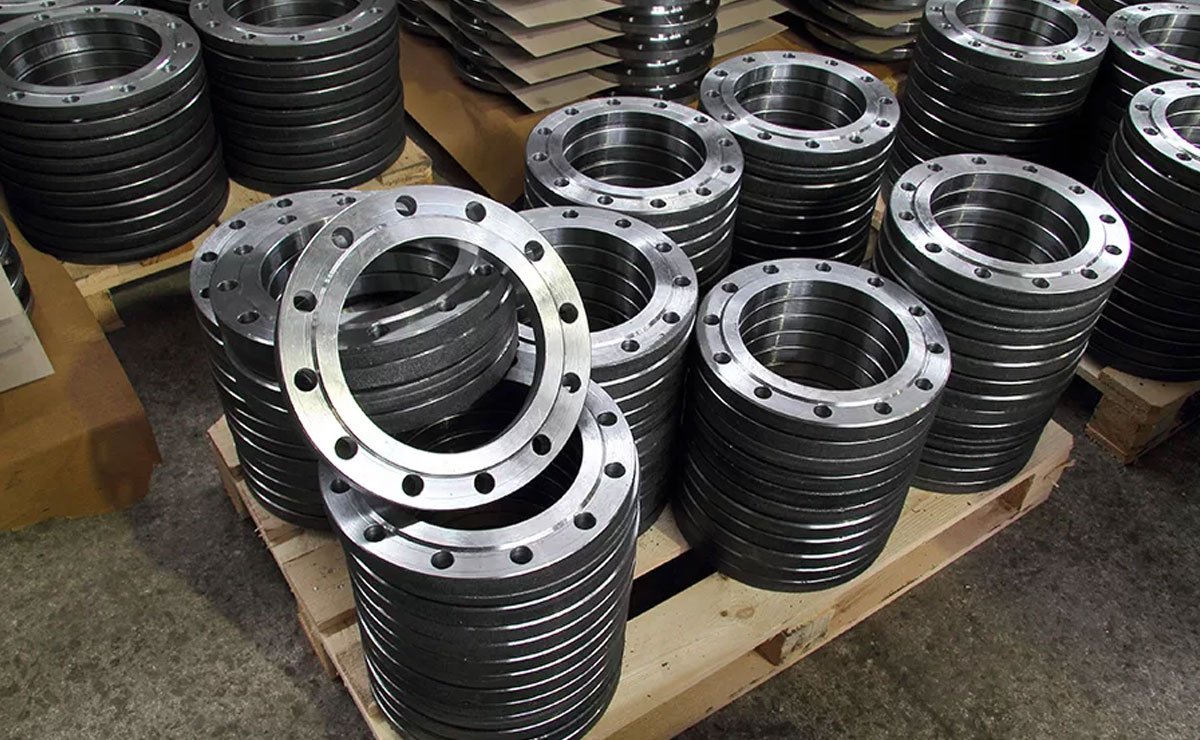

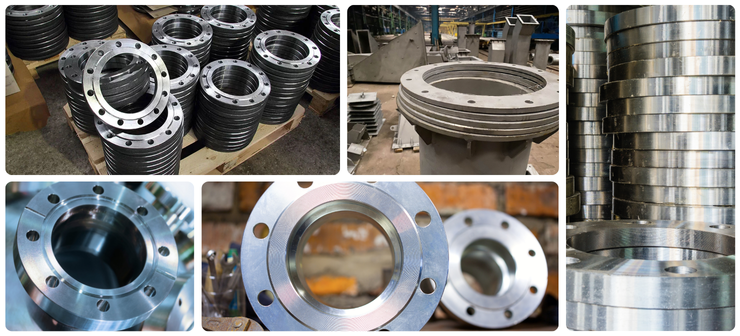

Carbon Steel Flanges

Carbon steel flanges are essential components used to connect pipes, valves, pumps, and other equipment in piping systems. Manufactured from carbon steel, these flanges are known for their strength, durability, and cost-effectiveness, making them one of the most widely used flange materials in industries worldwide. They are especially suitable for high-pressure applications and systems that require toughness and resistance to wear.

Carbon steel is primarily an alloy of iron and carbon, with trace amounts of manganese, sulfur, and phosphorus. The carbon content in these flanges can vary, which determines their hardness, strength, and machinability. Depending on the grade and standard, carbon steel flanges can be used in applications ranging from low-pressure water lines to high-temperature, high-pressure industrial systems.

Key Features of Carbon Steel Flanges

One of the most notable features of carbon steel flanges is their excellent mechanical strength, which makes them reliable for heavy-duty applications. They are capable of withstanding high pressure and temperature, ensuring leak-proof connections in critical environments. Carbon steel also has good resistance to wear and impact, which is why these flanges are widely used in industries like oil and gas, petrochemicals, and power generation.

Another advantage is cost-effectiveness. Compared to stainless steel or exotic alloys, carbon steel flanges provide strength and durability at a much lower cost. They are also easy to machine, weld, and fabricate, which makes them highly versatile for different piping designs. Carbon steel flanges can also be surface treated or coated with protective finishes such as galvanization, epoxy coating, or black oxide to enhance their resistance against rust and corrosion.

Types of Carbon Steel Flanges

Carbon steel flanges are available in various designs to suit different piping requirements. Each type serves a specific purpose and ensures safe, efficient, and reliable operation of the piping system.

• ♦  Weld Neck Flanges are designed for high-pressure applications and are welded into the pipeline for strength and leak-proof performance.
• ♦  Slip-On Flanges are easier to install and suitable for low-pressure systems where frequent maintenance may be required.
• ♦  Blind Flanges are used to close the ends of piping systems or isolate a section of a pipeline.
• ♦  Socket Weld Flanges are suitable for small-diameter, high-pressure pipelines and provide a secure welded connection.
• ♦  Threaded Flanges allow quick assembly without welding and are commonly used in low-pressure, non-critical systems.
• ♦  Lap Joint Flanges are ideal for systems requiring frequent dismantling for cleaning or inspection.
• ♦  Ring Type Joint (RTJ) Flanges are designed for high-pressure systems where leak-proof sealing is critical.

Applications of Carbon Steel Flanges

Due to their strength, durability, and affordability, carbon steel flanges are widely used across multiple industries. In the oil and gas sector, they are used in pipelines, refineries, and offshore platforms where reliability under pressure is essential. The chemical and petrochemical industries use carbon steel flanges in process plants, storage tanks, and high-temperature chemical handling systems.

In the power generation industry, these flanges are employed in steam lines, boilers, and turbine systems. The shipbuilding and marine industry relies on carbon steel flanges for their ability to handle high stress and impact loads in harsh environments. They are also extensively used in water treatment plants, construction, automotive, and heavy engineering industries, making them one of the most versatile flange materials available.

Standards and Grades of Carbon Steel Flanges

Carbon steel flanges are manufactured to comply with international standards such as ASME, ASTM, ANSI, DIN, EN, and BS. Depending on the carbon content and alloying elements, they are available in different grades, including low carbon steel, medium carbon steel, and high carbon steel flanges. Low carbon steel flanges are easy to weld and machine, while medium and high carbon steel flanges provide greater strength and hardness for heavy-duty applications.

Benefits of Using Carbon Steel Flanges

• ♦  High strength and toughness for reliable performance under extreme conditions

• ♦  Versatility with multiple types and pressure classes available

• ♦  Cost-effective solution compared to stainless and alloy steel flanges

• ♦  Durability with long service life when properly maintained

• ♦  Weldability and machinability for ease of fabrication

• ♦  Compatibility with various piping materials and systems

Why Choose Carbon Steel Flanges?

When it comes to industrial piping systems, carbon steel flanges remain a preferred choice because they combine affordability with durability. Their availability in a wide range of sizes, pressure ratings, and face types ensures that they can be used in nearly any application. In addition, surface treatments can extend their life even in corrosive environments, making them suitable for both onshore and offshore projects.

Choosing carbon steel flanges ensures that your piping systems remain safe, reliable, and efficient under challenging operating conditions. Whether used in oil refineries, chemical plants, marine environments, or power plants, these flanges consistently deliver performance at a competitive price.

Conclusion

Carbon steel flanges are a cost-effective and durable solution for connecting and sealing pipelines in industries that demand strength and reliability. With excellent mechanical properties, wide availability, and compliance with international standards, they are one of the most trusted choices for high-pressure and high-temperature applications. From oil and gas to power generation and shipbuilding, carbon steel flanges play a vital role in ensuring the safe and efficient operation of critical piping systems.

For projects that require dependable and affordable flange solutions, carbon steel flanges are the ideal choice.
