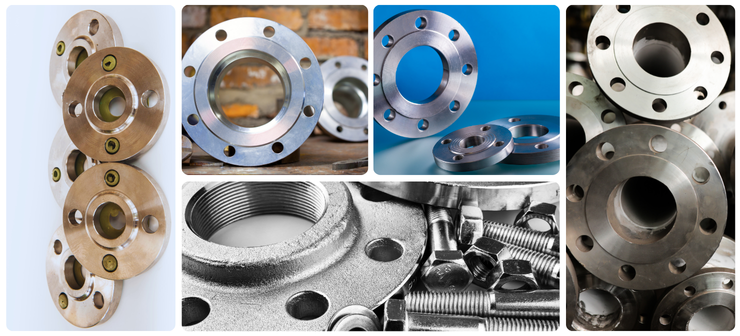

Monel Flanges
Monel Flanges are high-performance industrial components designed to join, connect, or provide access points in piping systems. Manufactured using premium nickel-copper alloys such as Monel 400 and Monel K500, these flanges are valued for their exceptional corrosion resistance, durability, and mechanical strength. They are widely used in industries that operate in harsh, corrosive, and high-pressure environments, including marine, chemical, petrochemical, oil & gas, and power generation sectors.
Monel flanges are available in a variety of types such as weld neck flanges, slip-on flanges, blind flanges, socket weld flanges, lap joint flanges, and threaded flanges. Each type is designed to serve specific piping needs, ensuring leak-proof, reliable, and long-lasting performance.
Chemical Composition
The performance of Monel flanges is determined by their unique chemical makeup:
Monel 400: Composed of approximately 63% minimum nickel, with 28–34% copper, small amounts of iron, manganese, and silicon. This alloy delivers excellent resistance to seawater, steam, brine, and acidic environments like hydrofluoric and sulfuric acids.
Monel K500: A precipitation-hardened version of Monel 400, enhanced with aluminum and titanium. This grade maintains the same outstanding corrosion resistance as Monel 400 but offers significantly higher strength and hardness.
Both grades are resistant to oxidation, pitting, crevice corrosion, and stress corrosion cracking, even in challenging environments such as deep-sea applications and chemical processing units.
Mechanical Properties
The outstanding mechanical strength of Monel flanges makes them suitable for high-stress and high-pressure applications:
Monel 400:
Density: 8.8 g/cm³
Melting Point: 1350°C (2460°F)
Tensile Strength: 550 MPa (80,000 psi)
Yield Strength (0.2% Offset): 240 MPa (35,000 psi)
Elongation: 40%
Monel K500:
Density: 8.44 g/cm³
Melting Point: 1350°C (2460°F)
Tensile Strength: 1100 MPa (160,000 psi)
Yield Strength (0.2% Offset): 790 MPa (115,000 psi)
Elongation: 20%
These mechanical properties highlight Monel flanges’ ability to withstand high mechanical stress, extreme temperatures, and corrosive conditions, ensuring durability and extended service life.
Key Advantages of Monel Flanges
Superior Corrosion Resistance – Performs exceptionally well in saltwater, marine atmospheres, acidic, and alkaline conditions.
High Strength & Toughness – Capable of withstanding intense mechanical loads and fatigue stresses.
Temperature Resilience – Effective in both cryogenic and elevated temperatures, making them versatile for a wide range of applications.
Leak-Proof Connections – Manufactured with precision to ensure secure, tight, and long-lasting joints.
Resistance to Stress Cracking – Offers protection against chloride-induced stress corrosion cracking and pitting.
Extended Service Life – With excellent durability, Monel flanges reduce the need for frequent replacements and maintenance.
Types of Monel Flanges
Depending on the application, Monel flanges are produced in several designs:
Weld Neck Flanges – Suitable for high-pressure systems requiring strong, leak-proof connections.
Slip-On Flanges – Easy to install and align, commonly used in low-pressure piping.
Blind Flanges – Used to close the ends of pipes, valves, or pressure vessel openings.
Socket Weld Flanges – Designed for small-sized, high-pressure pipelines.
Lap Joint Flanges – Used with stub ends for easy assembly and disassembly.
Threaded Flanges – Ideal for systems where welding is not feasible.
Applications of Monel Flanges
Thanks to their unique chemical and mechanical properties, Monel flanges are trusted in industries where ordinary alloys fail to perform:
Marine & Offshore Engineering – Valves, pumps, and seawater piping systems resistant to saltwater corrosion.
Oil & Gas Industry – Pipelines, refinery equipment, and offshore platforms exposed to corrosive environments.
Chemical & Petrochemical Plants – Acid processing, alkali handling, and equipment exposed to corrosive chemicals.
Power Generation – Boiler feedwater systems, condensers, and nuclear power applications.
Aerospace & Defense – High-strength, corrosion-resistant components for aircraft and defense equipment.
Desalination Plants – Ideal for seawater processing and brine treatment facilities.
Why Choose Monel Flanges?
Monel flanges are considered a premium choice for critical applications where safety, reliability, and performance are paramount. While the initial investment may be higher than standard stainless steel or carbon steel flanges, the long-term savings in maintenance, downtime, and replacements make Monel flanges highly cost-effective.
Whether exposed to seawater, acidic environments, or high-pressure operations, Monel flanges deliver unmatched durability, resistance, and performance.
Conclusion
Monel Flanges represent a blend of strength, reliability, and superior corrosion resistance, making them an essential component for industries operating in demanding environments. With grades like Monel 400 and Monel K500, these flanges are built to endure extreme pressures, high temperatures, and aggressive chemicals without compromising performance.
For marine engineering, chemical processing, oil & gas exploration, or power generation, Monel flanges provide long-term efficiency, safety, and value. Their unique composition and robust properties make them a preferred choice worldwide for critical piping systems.
