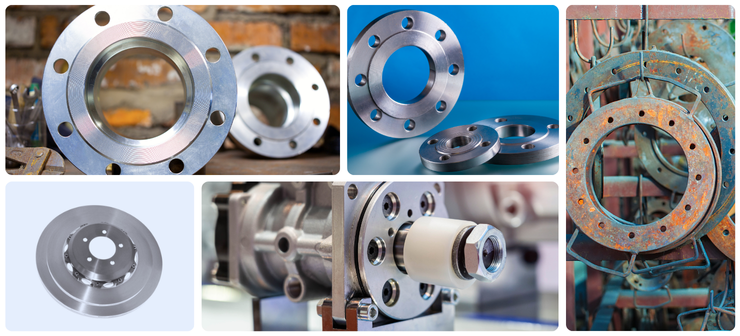

Nickel Flanges
Nickel Flanges are essential components in piping systems, designed to connect pipes, valves, pumps, and other equipment with secure, leak-proof joints. Manufactured primarily from Nickel 200 and Nickel 201, these flanges offer exceptional strength, corrosion resistance, and thermal stability, making them suitable for industries that demand reliable performance in challenging environments.
With their high nickel content (minimum 99%), these flanges are resistant to various corrosive agents, especially caustic alkalis, neutral salts, and acidic environments. They also maintain excellent ductility, electrical conductivity, and thermal stability, ensuring consistent performance across a wide range of temperatures.
Chemical Composition of Nickel Flanges
The chemical balance of nickel provides superior resistance to corrosion and oxidation. The key difference between Nickel 200 and Nickel 201 lies in their carbon content, which influences their suitability for different temperature conditions.
Nickel 200
Carbon: 0.15% max
Manganese: 0.35% max
Silicon: 0.35% max
Sulfur: 0.01% max
Copper: 0.25% max
Iron: 0.40% max
Nickel: 99.0% min
Nickel 201
Carbon: 0.02% max
Manganese: 0.35% max
Silicon: 0.35% max
Sulfur: 0.01% max
Copper: 0.25% max
Iron: 0.40% max
Nickel: 99.0% min
Nickel 200 is a commercially pure wrought nickel suitable for most general applications, whereas Nickel 201, with its lower carbon content, prevents graphitization and is better suited for high-temperature environments.
Mechanical Properties of Nickel Flanges
Nickel flanges are valued for their strength, toughness, and ductility. Both Nickel 200 and Nickel 201 offer nearly identical mechanical characteristics, ensuring durability under high stress and thermal fluctuations.
Nickel 200
Density: 8.9 g/cm³
Melting Point: 1446 °C (2635 °F)
Tensile Strength: 67,000 psi (462 MPa)
Yield Strength (0.2% Offset): 21,500 psi (148 MPa)
Elongation: 45%
Nickel 201
Density: 8.9 g/cm³
Melting Point: 1446 °C (2635 °F)
Tensile Strength: 67,000 psi (462 MPa)
Yield Strength (0.2% Offset): 21,500 psi (148 MPa)
Elongation: 45%
These properties make nickel flanges reliable under high pressure, extreme temperatures, and corrosive media.
Key Features of Nickel Flanges
High Corrosion Resistance – Excellent resistance to caustic alkalis, neutral salts, acids, and seawater.
Thermal Stability – Performs well in both cryogenic and elevated temperatures.
High Ductility – Easy to fabricate, weld, and machine.
Excellent Conductivity – Superior electrical and thermal conductivity.
Durability – Withstands mechanical stress in high-pressure applications.
Non-Magnetic – Suitable for sensitive electronic and chemical industries.
Types of Nickel Flanges
Nickel flanges are available in different designs to suit specific piping system requirements:
Weld Neck Flanges – Ideal for high-pressure and high-temperature applications.
Slip-On Flanges – Easy to install and suitable for low-pressure systems.
Blind Flanges – Used to seal pipe ends or pressure vessel openings.
Socket Weld Flanges – Ensure strong connections in small-diameter pipes.
Threaded Flanges – Allow quick assembly without welding.
Lap Joint Flanges – Used with stub ends in systems requiring frequent dismantling.
Orifice Flanges – Designed for flow measurement applications.
Each flange type is engineered to deliver leak-proof, durable, and reliable connections across a variety of industries.
Industrial Applications of Nickel Flanges
Due to their purity, mechanical strength, and corrosion resistance, nickel flanges are used in diverse industries, including:
Chemical Processing Plants – Resistant to caustic soda, acids, and corrosive chemicals.
Petrochemical and Refining – Ensures long-lasting performance in harsh environments.
Food and Beverage Industry – Maintains purity, non-toxic, and hygienic processing conditions.
Pharmaceutical Industry – Prevents contamination during drug manufacturing.
Power Generation – Used in turbines, condensers, and heat exchangers.
Marine Engineering – Protects against seawater corrosion and biofouling.
Electronics and Aerospace – Beneficial for high conductivity and thermal stability.
Advantages of Nickel Flanges Over Other Alloys
Compared to stainless steel or copper alloys, Nickel 200/201 flanges provide:
Greater resistance to chloride and alkaline environments.
Higher thermal and electrical conductivity.
Superior performance in reducing and oxidizing atmospheres.
Long service life with reduced maintenance costs.
Suitability for both cryogenic and elevated temperature conditions.
Why Choose Nickel Flanges?
Nickel flanges are a reliable solution for critical piping systems, combining purity, strength, and corrosion resistance. Industries that demand safe, efficient, and long-lasting connections choose Nickel 200 and Nickel 201 flanges because they maintain structural integrity even in extreme service conditions.
With options in various sizes, pressure ratings, and designs, nickel flanges can be tailored to meet specific industrial requirements, ensuring both performance and cost-efficiency.
Conclusion
Nickel Flanges stand out as premium fittings, delivering exceptional corrosion resistance, mechanical strength, and thermal stability. Whether in chemical processing, marine environments, or power plants, they provide durability, safety, and long service life. With the choice of Nickel 200 for general use and Nickel 201 for higher temperature resistance, industries benefit from tailored solutions that ensure reliable performance.
By combining purity, strength, and versatility, nickel flanges remain the preferred choice for industries worldwide seeking dependable piping solutions.
Connect with us
Quality Pipe Fitting Solutions
Reliable, durable, and precise pipe fittings for every industrial need.
Buttweld Fittings
High-quality buttweld fittings for secure, leak-proof pipe connections.
Explore more
Flanges
Durable industrial flanges for reliable piping connection and pressure sealing.
Explore more
Threaded Fittings
Precision threaded fittings for secure, easy, and leak-resistant pipe connections.
Explore more
Socket Weld Fittings
Robust socket weld fittings for high-pressure, leak-proof pipe connections.
Explore more
Pre Fabricated Fittings
Custom pre-fabricated fittings for efficient, accurate, and time-saving piping installations.
Explore more
Fastners
High-performance fasteners for strong, reliable, and durable industrial connections.
Explore more
Pipes & Tubes
Premium pipes and tubes for efficient flow and structural reliability in industrial systems.
Explore more
Spades & Ring Spacers
Spades and ring spacers for safe pipeline isolation and maintenance operations.
Explore moreFAQs - Nickel Flanges
Nickel flanges connect pipes, pumps, and valves securely. Their corrosion resistance and durability make them ideal for chemical, marine, pharmaceutical, and power plant applications worldwide.
Nickel 200 is a commercially pure alloy for general use. Nickel 201’s lower carbon content makes it suitable for high-temperature environments, preventing graphitization and ensuring reliability.
Nickel flanges resist caustic alkalis, neutral salts, and acidic environments. Their high nickel content ensures exceptional protection, making them suitable for harsh chemical and marine conditions globally.
Nickel flanges include weld neck, slip-on, blind, socket weld, threaded, lap joint, and orifice designs, each engineered for specific industrial pressure, sealing, and maintenance requirements.
Yes, nickel flanges perform well across temperature extremes. Nickel 201 is especially resistant to graphitization at elevated temperatures, ensuring long-lasting durability in high-heat operating environments worldwide.
Absolutely. Nickel flanges maintain excellent ductility and toughness at cryogenic temperatures, making them dependable for aerospace, electronic, and power industries requiring reliable low-temperature performance.
Industries include chemical processing, petrochemical refining, marine, power generation, food, pharmaceuticals, and aerospace. Nickel flanges provide durability, corrosion resistance, and purity essential for critical applications.
Key features include high corrosion resistance, strength, ductility, thermal stability, excellent conductivity, and non-magnetic properties. These make nickel flanges superior for sensitive and demanding environments.
Nickel flanges provide tensile strength up to 67,000 psi, yield strength of 21,500 psi, and elongation of 45%, ensuring durability in high-pressure piping systems.
Nickel flanges outperform stainless steel and copper alloys in corrosion resistance, conductivity, and temperature tolerance, offering longer service life and reduced maintenance costs across industries
