Steel Pipe Spools
- Type :Steel Pipe Spool
- Size :114mm to 2500mm diameter (Seamless & Welded, Fabricated)
- Operating Pressures : Maximum 3500kPas
- Maximum Velocities :6m/s for cement mortar lined fittings
- Operating Temperatures : -40˚C to 70˚C
- In Form : spool
Mitered Pipe Bends
- Type :Seamless / ERW / Welded / Fabricated
- Size :1/2″NB TO 48″NB IN
- Dimensions :ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
- Bend Radii :Cast Iron
- Bending Radius(R) : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
- Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°

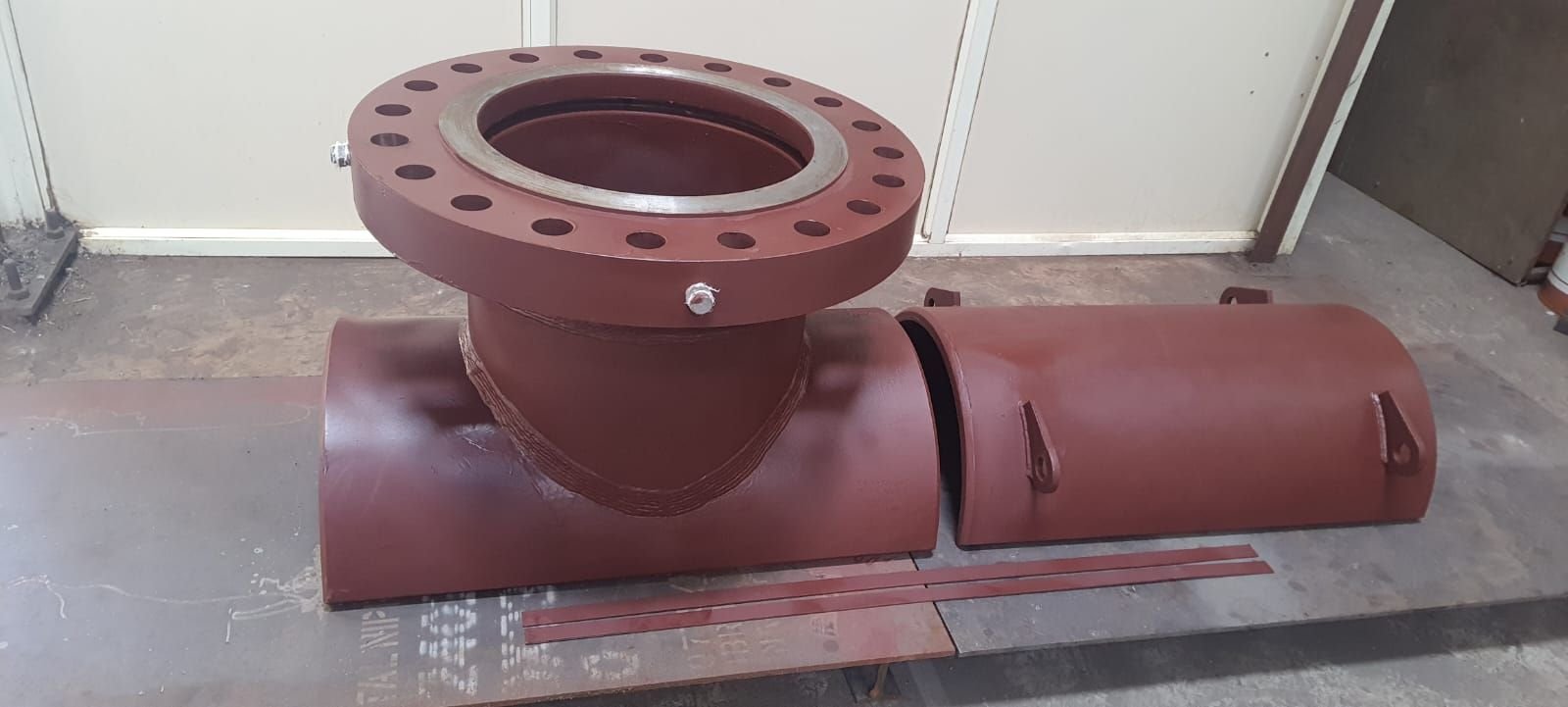

Flanged Split Tee
- Standards :ANSI B31.1, B31.3, ANSI B31.4 & B31.8
- Size : 2” TO 48”
- Pressure Ratings :150# TO 2500#
- DIN :DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
- EN : EN10253-1, EN10253-2
- Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
- Form :Split Tee
Stub End
- Size :1/8″NB TO 48″NB IN
- Dimensions :ASME/ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313, ASME B16.28
- Forms : Long Stub End, Short Stub End, Lap Joint stub end
- Type : Seamless / ERW / Welded / Fabricated
- Schedule: SCH5, SCH10, SCH40, SCH STD, SCH 80, SCH 100, SCH 120, SCH 160, SCH XS, SCH XXS
- Product’s Angle :Bevelled
Steel Flanged Elbow
- Size :4 in
- Elbow Type :Flanged
- Material : Cast Iron
- Rating : 125#
Flanged Lateral Tee
- Lining materials :PFA,PP
- Flanges according to EN 1092-1 :combinations of fixed flanges,combinations of loose flanges,combinations of fixed and loose flanges
- Other pressure levels: : PN 16 PN 25 PN 40
- Special features:earthing stud/lug vent hole extension flange stopper
Double Flanged Pipe
- Size Range :2″ (DN50) to 48″ (DN1200)
- Design & Manufacture :BS 67655-I / API 598
- Body Design : : Double Flange
- Body :Cast iron, Ductile iron, Carbon Steel, Stainless Steelsion
- Disc :Cast iron, Ductile iron, Carbon Steel, Stainless Steel
Frequently Asked Questions
Pre-fabricated steel pipe spools are custom-made pipe assemblies that are fabricated off-site and delivered ready for installation. They range in size from 114mm to 2500mm in diameter.
The maximum operating pressure for steel pipe spools is 3500 kPa.
Mitered pipe bends can be made from seamless, ERW, welded, or fabricated materials and are available in various sizes and radii.
Mitered pipe bends follow dimensions specified in ASME/ANSI B16.9, ASME B16.28, and MSS-SP-43.
Stub ends conform to ASME/ANSI B16.9, MSS-SP-43, JIS B2312, JIS B2313, and ASME B16.28 standards.
Double flanged pipes are available in sizes ranging from 2" (DN50) to 48" (DN1200) and are made from materials like cast iron, ductile iron, carbon steel, and stainless steel.
Flanged lateral tees may include features like earthing studs, vent hole extensions, and flange stoppers.
Flanged lateral tees are lined with materials like PFA or PP and can have various flange combinations and pressure ratings.
A steel flanged elbow is used to change the direction of flow in a pipeline and is typically made from cast iron with a 125# rating.
A flanged split tee is a pipe fitting used for branching off from a main pipeline. It is available in sizes from 2” to 48” and pressure ratings from 150# to 2500#.
