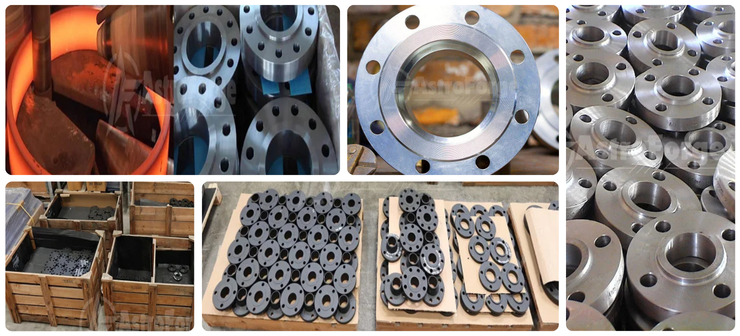

ASME B16.47 / ANSI / ASME B16.5 Slip On Flange Manufacturer
Astroforge Fitting Industries are Manufacturers, Suppliers, and Exporters of Slip-on Flanges in India. We are Manufacturing high-quality Slip-on Flanges which are suitable for low-pressure applications. Our qualitative range of Slip-on Flanges is exclusively designed for several piping applications of varied industries. Slip-on Flanges that are precision engineered using the simplest quality material. We also customize these industrial flanges as per the necessities of the clients.
Slip-on Flanges are typically given a raised or flat face. When a raised face is important for slip-on pipe flanges, the quality height is 1/16″ for slip-on pipe flanges under 400#. For slip-on pipe flanges of 400# and up, the quality slip-on-pipe flange raised face height is 1/4″. Slip-on Flange is actually a ring that’s placed over the pipe end, with the flange face extending from the top of the pipe by enough distance to use a weld bead on the within diameter.
Slip-on Pipe Flanges altogether steel material grades, including carbon slip-on pipe flanges, chrome steel slip-on pipe flanges, and alloy slip-on pipe flanges. We even have many various slip-on pipe flanges available and ready to ship. Slip-on pipe flanges available include AWWA slip-on pipe flanges, ANSI Slip-on Pipe Flanges, Pressure Vessel slip pipe flanges, and slip-on pipe flanges that match the OD and drilling of ASME flanges. The slip-on flange can also be used joint flanges if type b or Type C stub ends are used.
Tolerances of Flanges
Flange Weight Chart, Slip On Flange Manufacturers, Slip On Flange Exporters, Slip On Flange Stockists
ANSI / ASME B16.5 Slip On Flange Specifications
Flange Size – ½” (15 NB) to 48″ (1200NB)
Flange Class –150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40.
Flange DIN – DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
Flange BS – BS4504 , BS4504, BS1560, BS10
Flange Standard – ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Flange Coating/Surface Treatment – Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Flange Connection Type – Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
Flange Face Type –Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Flange Dimensions – ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Flange JIS – 5K, 10K, 16K, 20K, 30K, 40K, 63K
Flange UNI – 6Bar 10Bar 16Bar 25Bar 40Bar
Flange Coating – Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Production technique – Forged, Heat treated and machined
Test Certificates – EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc
Flange Test – Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment – Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Flange Origin – Indian / West Europe / Japan / USA / Korean
Slip-On Flanges Class 150 Dimensions
All dimensions are in “mm” unless noted otherwise. Dimensions of Class 150 Slip On Flanges as per ASME B16.5.
| Nominal Pipe Size | Outside diameter of flange (D) | Thick of flange (B) | Diameter of Hub at base (A) | Diameter of raised face (G) | Length thru Hub (H) | Dia of bore (ID) | No of holes | Dia of holes (L) | Dia of bolts | Diam of bolt circle (K) | Approx weight kg |
| 1/2 | 88.9 | 11.2 | 35.1 | 30.2 | 15.7 | 22.4 | 4 | 15.7 | 1/2 | 60.5 | 0.5 |
| 3/4 | 98.6 | 12.7 | 42.9 | 38.1 | 15.7 | 27.7 | 4 | 15.7 | 1/2 | 69.9 | 1 |
| 1 | 108 | 14.2 | 50.8 | 49.3 | 17.5 | 34.5 | 4 | 15.7 | 1/2 | 79.2 | 1 |
| 1-1/4 | 117.3 | 15.7 | 63.5 | 58.7 | 20.6 | 43.2 | 4 | 15.7 | 1/2 | 88.9 | 1 |
| 1-1/2 | 127 | 17.5 | 73.2 | 65 | 22.4 | 49.5 | 4 | 15.7 | 1/2 | 98.6 | 1 |
| 2 | 152.4 | 19.1 | 91.9 | 77.7 | 25.4 | 62 | 4 | 19.1 | 5/8 | 120.7 | 2 |
| 2-1/2 | 177.8 | 22.4 | 104.6 | 90.4 | 28.4 | 74.7 | 4 | 19.1 | 5/8 | 139.7 | 3 |
| 3 | 190.5 | 23.9 | 127 | 108 | 30.2 | 90.7 | 4 | 19.1 | 5/8 | 152.4 | 4 |
| 3-1/2 | 215.9 | 23.9 | 139.7 | 122.2 | 31.8 | 103.4 | 8 | 19.1 | 5/8 | 177.8 | 5 |
| 4 | 228.6 | 23.9 | 157.2 | 134.9 | 33.3 | 116.1 | 8 | 19.1 | 5/8 | 190.5 | 6 |
| 5 | 254 | 23.9 | 185.7 | 163.6 | 36.6 | 143.8 | 8 | 22.4 | 3/4 | 215.9 | 7 |
| 6 | 279.4 | 25.4 | 215.9 | 192 | 39.6 | 170.7 | 8 | 22.4 | 3/4 | 241.3 | 9 |
| 8 | 342.9 | 28.4 | 269.7 | 246.1 | 44.5 | 221.5 | 8 | 22.4 | 3/4 | 298.5 | 14 |
| 10 | 406.4 | 30.2 | 323.9 | 304.8 | 49.3 | 276.4 | 12 | 25.4 | 7/8 | 362 | 20 |
| 12 | 482.6 | 31.8 | 381 | 365.3 | 55.6 | 327.2 | 12 | 25.4 | 7/8 | 431.8 | 29 |
| 14 | 533.4 | 35.1 | 412.8 | 400.1 | 57.2 | 359.2 | 12 | 28.4 | 1 | 476.3 | 41 |
| 16 | 596.9 | 36.6 | 469.9 | 457.2 | 63.5 | 410.5 | 16 | 28.4 | 1 | 539.8 | 44 |
| 18 | 635 | 39.6 | 533.4 | 505 | 68.3 | 461.8 | 16 | 31.8 | 1-1/8 | 577.9 | 59 |
| 20 | 698.5 | 42.9 | 584.2 | 558.8 | 73.2 | 513.1 | 20 | 31.8 | 1-1/8 | 635 | 75 |
| 24 | 812.8 | 47.8 | 692.2 | 663.4 | 82.6 | 616 | 20 | 35.1 | 1-1/4 | 749.3 | 100 |
Slip-On Flanges Class 300 Dimensions
All dimensions are in “mm” unless noted otherwise. Dimensions of Class 300 Slip On Flanges as per ASME B16.5.
| Nominal Pipe Size | Outside diameter of flange (D) | Thick of flange (B) | Diameter of Hub at base (A) | Diameter of raised face (G) | Length thru Hub (H) | Dia of bore (ID) | No of holes | Dia of holes (L) | Dia of bolts | Diam of bolt circle (K) | Approx weight kg |
| 1/2 | 95.3 | 14.2 | 35.1 | 38.1 | 22.4 | 22.4 | 4 | 15.7 | 1/2 | 66.5 | 1 |
| 3/4 | 117.3 | 15.7 | 42.9 | 47.8 | 25.4 | 27.7 | 4 | 19.1 | 5/8 | 82.6 | 1 |
| 1 | 124 | 17.5 | 50.8 | 53.8 | 26.9 | 34.5 | 4 | 19.1 | 5/8 | 88.9 | 1 |
| 1-1/4 | 133.4 | 19.1 | 63.5 | 63.5 | 26.9 | 43.2 | 4 | 19.1 | 5/8 | 98.6 | 2 |
| 1-1/2 | 155.4 | 20.6 | 73.2 | 69.9 | 30.2 | 49.5 | 4 | 22.4 | 3/4 | 114.3 | 3 |
| 2 | 165.1 | 22.4 | 91.9 | 84.1 | 33.3 | 62 | 8 | 19.1 | 5/8 | 127 | 3 |
| 2-1/2 | 190.5 | 25.4 | 104.6 | 100.1 | 38.1 | 74.7 | 8 | 22.4 | 3/4 | 149.4 | 5 |
| 3 | 209.6 | 28.4 | 127 | 117.3 | 42.9 | 90.7 | 22.4 | 8 | 3/4 | 168.1 | 6 |
| 3-1/2 | 228.6 | 30.2 | 139.7 | 133.4 | 44.5 | 103.4 | 22.4 | 8 | 3/4 | 184.2 | 8 |
| 4 | 254 | 31.8 | 157.2 | 146.1 | 47.8 | 116.1 | 8 | 22.4 | 3/4 | 200.2 | 10 |
| 5 | 279.4 | 35.1 | 185.7 | 177.8 | 50.8 | 143.8 | 8 | 22.4 | 3/4 | 235 | 13 |
| 6 | 317.5 | 36.6 | 215.9 | 206.2 | 52.3 | 170.7 | 12 | 22.4 | 3/4 | 269.7 | 18 |
| 8 | 381 | 41.1 | 269.7 | 260.4 | 62 | 221.5 | 12 | 25.4 | 73/93 | 330.2 | 26 |
| 10 | 444.5 | 47.8 | 323.9 | 320.5 | 66.5 | 276.4 | 16 | 28.4 | 1 | 387.4 | 37 |
| 12 | 520.7 | 50.8 | 381 | 374.7 | 73.2 | 327.2 | 16 | 31.8 | 1-1/8 | 450.9 | 52 |
| 14 | 584.2 | 53.8 | 412.8 | 425.5 | 76.2 | 359.2 | 20 | 31.8 | 1-1/8 | 514.4 | 75 |
| 16 | 647.7 | 57.2 | 469.9 | 482.6 | 82.6 | 410.5 | 20 | 35.1 | 1-1/4 | 571.5 | 86 |
| 18 | 711.2 | 60.5 | 533.4 | 533.4 | 88.9 | 461.8 | 24 | 35.1 | 1-1/4 | 628.7 | 113 |
| 20 | 774.7 | 63.5 | 584.2 | 587.2 | 95.3 | 513.1 | 24 | 35.1 | 1-1/4 | 685.8 | 143 |
| 24 | 914.4 | 69.9 | 692.2 | 701.5 | 106.4 | 616 | 24 | 41.1 | 1-1/2 | 812.8 | 215 |
Slip-On Flanges Class 600 Dimensions
All dimensions are in “mm” unless noted otherwise. Dimensions of Class 600 Slip On Flanges as per ASME B16.5.
| Nominal Pipe Size | Outside diameter of flange (D) | Thick of flange (B) | Diameter of Hub at base (A) | Diameter of raised face (G) | Length thru Hub (H) | Dia of bore (ID) | No of holes | Dia of holes (L) | Dia of bolts | Diam of bolt circle (K) | Approx weight kg |
| 1/2 | 95.3 | 14.2 | 35.1 | 38.1 | 22.4 | 22.4 | 4 | 15.7 | 1/2 | 66.5 | 1 |
| 3/4 | 117.3 | 15.7 | 42.9 | 47.8 | 25.4 | 27.7 | 4 | 19.1 | 5/8 | 82.6 | 1 |
| 1 | 124 | 17.5 | 50.8 | 53.8 | 26.9 | 34.5 | 4 | 19.1 | 5/8 | 88.9 | 2 |
| 1-1/4 | 133.4 | 20.6 | 63.5 | 63.5 | 28.4 | 43.2 | 4 | 19.1 | 5/8 | 98.6 | 2 |
| 1-1/2 | 155.4 | 22.4 | 73.2 | 69.9 | 31.8 | 49.5 | 4 | 22.4 | 3/4 | 114.3 | 3 |
| 2 | 165.1 | 25.4 | 91.9 | 84.1 | 36.6 | 62 | 8 | 19.1 | 5/8 | 127 | 4 |
| 2-1/2 | 190.5 | 28.4 | 104.6 | 100.1 | 41.1 | 74.7 | 8 | 22.4 | 3/4 | 149.4 | 6 |
| 3 | 209.6 | 31.8 | 127 | 117.3 | 46 | 90.7 | 8 | 22.4 | 3/4 | 168.1 | 7 |
| 3-1/2 | 228.6 | 35.1 | 139.7 | 133.4 | 49.3 | 103.4 | 8 | 25.4 | 7/8 | 184.2 | 10 |
| 4 | 273.1 | 38.1 | 157.2 | 152.4 | 53.8 | 116.1 | 8 | 25.4 | 7/8 | 215.9 | 17 |
| 5 | 330.2 | 44.5 | 185.7 | 189 | 60.5 | 143.8 | 8 | 28.4 | 1 | 266.7 | 29 |
| 8 | 419.1 | 55.6 | 269.7 | 273.1 | 76.2 | 221.5 | 12 | 31.8 | 1-1/8 | 349.3 | 52 |
| 10 | 508 | 63.5 | 323.9 | 342.9 | 85.9 | 276.4 | 16 | 35.1 | 1-1/4 | 431.8 | 77 |
| 12 | 558.8 | 66.5 | 381 | 400.1 | 91.9 | 327.2 | 20 | 35.1 | 1-1/4 | 489 | 91 |
| 14 | 603.3 | 69.9 | 412.8 | 431.8 | 93.7 | 359.2 | 20 | 38.1 | 1-3/8 | 527.1 | 104 |
| 16 | 685.8 | 76.2 | 469.9 | 495.3 | 106.4 | 410.5 | 20 | 41.1 | 1-1/2 | 603.3 | 150 |
| 18 | 743 | 82.6 | 533.4 | 546.1 | 117.3 | 461.8 | 20 | 44.5 | 1-5/8 | 654.1 | 181 |
| 20 | 812.8 | 88.9 | 584.2 | 609.6 | 127 | 513.1 | 24 | 44.5 | 1-5/8 | 723.9 | 231 |
| 24 | 939.8 | 101.6 | 692.2 | 717.6 | 139.7 | 616 | 24 | 50.8 | 1-7/8 | 838.2 | 331 |
Slip-On Flanges Class 900 Dimensions
All dimensions are in “mm” unless noted otherwise. Dimensions of Class 900 Slip On Flanges as per ASME B16.5.
| Nominal Pipe Size | Outside diameter of flange (D) | Thick of flange (B) | Diameter of Hub at base (A) | Diameter of raised face (G) | Length thru Hub (H) | Dia of bore (ID) | No of holes | Dia of holes (L) | Dia of bolts | Diam of bolt circle (K) | Approx weight kg |
| 1/2 | 120.7 | 22.4 | 35.1 | 38.1 | 31.8 | 22.4 | 4 | 22.4 | 3/4 | 82.6 | 2 |
| 3/4 | 130 | 25.4 | 42.9 | 44.5 | 35.1 | 27.7 | 4 | 22.4 | 3/4 | 88.9 | 2 |
| 1 | 149.4 | 28.4 | 50.8 | 52.3 | 41.1 | 34.5 | 4 | 25.4 | 7/8 | 101.6 | 4 |
| 1-1/4 | 158.8 | 28.4 | 63.5 | 63.5 | 41.1 | 43.2 | 4 | 25.4 | 7/8 | 111.3 | 4 |
| 1-1/2 | 177.8 | 31.8 | 73.2 | 69.9 | 44.5 | 49.5 | 4 | 28.4 | 1 | 124 | 5 |
| 2 | 215.9 | 38.1 | 91.9 | 104.6 | 57.2 | 62 | 8 | 25.4 | 7/8 | 165.1 | 11 |
| 2-1/2 | 244.3 | 41.1 | 104.6 | 124 | 63.5 | 74.7 | 8 | 28.4 | 1 | 190.5 | 16 |
| 3 | 241.3 | 38.1 | 127 | 127 | 53.8 | 90.7 | 8 | 25.4 | 7/8 | 190.5 | 12 |
| 4 | 292.1 | 44.5 | 157.2 | 158.8 | 69.9 | 116.1 | 8 | 31.8 | 1-1/8 | 235 | 24 |
| 5 | 349.3 | 50.8 | 185.7 | 190.5 | 79.2 | 143.8 | 8 | 35.1 | 1-1/4 | 279.4 | 38 |
| 6 | 381 | 55.6 | 215.9 | 235 | 85.9 | 170.7 | 31.8 | 12 | 1-1/8 | 317.5 | 50 |
| 8 | 469.9 | 63.5 | 269.7 | 298.5 | 101.6 | 221.5 | 12 | 38.1 | 1-3/8 | 393.7 | 77 |
| 10 | 546.1 | 69.9 | 323.9 | 368.3 | 108 | 276.4 | 16 | 38.1 | 1-3/8 | 469.9 | 111 |
| 12 | 609.6 | 79.2 | 381 | 419.1 | 117.3 | 327.2 | 20 | 38.1 | 1-3/8 | 533.4 | 147 |
| 14 | 641.4 | 85.9 | 412.8 | 450.9 | 130 | 359.2 | 20 | 41.1 | 1-1/2 | 558.8 | 181 |
| 16 | 704.9 | 88.9 | 469.9 | 508 | 133.4 | 410.5 | 20 | 44.5 | 1-5/8 | 41.3 | 616 |
| 18 | 787.4 | 101.6 | 533.4 | 565.2 | 152.4 | 461.8 | 20 | 50.8 | 1-7/8 | 685.8 | 272 |
| 20 | 857.3 | 108 | 584.2 | 622.3 | 158.8 | 513.1 | 20 | 53.8 | 2 | 749.3 | 331 |
| 24 | 1041.4 | 139.7 | 692.2 | 749.3 | 203.2 | 616 | 20 | 66.5 | 2-1/2 | 901.7 | 635 |
Slip-On Flanges Class 1500 Dimensions
All dimensions are in “mm” unless noted otherwise. Dimensions of Class 1500 Slip On Flanges as per ASME B16.5.
| Nominal Pipe Size | Outside diameter of flange (D) | Thick of flange (B) | Diameter of Hub at base (A) | Diameter of raised face (G) | Length thru Hub (H) | Dia of bore (ID) | No of holes | Dia of holes (L) | Dia of bolts | Diam of bolt circle (K) | Approx weight kg |
| 1/2 | 120.7 | 22.4 | 35.1 | 38.1 | 31.8 | 22.4 | 4 | 22.4 | 3/4 | 82.6 | 2 |
| 3/4 | 130 | 25.4 | 42.9 | 44.5 | 35.1 | 27.7 | 4 | 22.4 | 3/4 | 88.9 | 2 |
| 1 | 149.4 | 28.4 | 50.8 | 52.3 | 41.1 | 34.5 | 4 | 25.4 | 7/8 | 101.6 | 4 |
| 1-1/4 | 158.8 | 28.4 | 63.5 | 63.5 | 41.1 | 43.2 | 4 | 25.4 | 7/8 | 111.3 | 4 |
| 1-1/2 | 177.8 | 31.8 | 73.2 | 69.9 | 44.5 | 49.5 | 4 | 28.4 | 1 | 124 | 5 |
| 2 | 215.9 | 38.1 | 91.9 | 104.6 | 57.2 | 62 | 8 | 25.4 | 7/8 | 165.1 | 11 |
| 2-1/2 | 244.3 | 41.1 | 104.6 | 124 | 63.5 | 74.7 | 8 | 28.4 | 1 | 190.5 | 16 |
| 3 | 266.7 | 47.8 | 127 | 133.4 | 73.2 | – | 8 | 31.8 | 1-1/8 | 203.2 | 22 |
| 4 | 311.2 | 53.8 | 157.2 | 162.1 | 90.4 | – | 8 | 35.1 | 1-1/4 | 241.3 | 33 |
| 5 | 374.7 | 73.2 | 185.7 | 196.9 | 104.6 | – | 8 | 41.1 | 1-1/2 | 292.1 | 59 |
| 6 | 393.7 | 82.6 | 215.9 | 228.6 | 119.1 | – | 12 | 38.1 | 1-3/8 | 317.5 | 75 |
| 8 | 482.6 | 91.9 | 269.7 | 292.1 | 142.7 | – | 12 | 44.5 | 1-5/8 | 393.7 | 118 |
| 10 | 584.2 | 108 | 323.9 | 368.3 | 158.8 | – | 12 | 50.8 | 1-7/8 | 482.6 | 197 |
| 12 | 673.1 | 124 | 381 | 450.9 | 180.8 | – | 16 | 53.8 | 2 | 571.5 | 263 |
| 14 | 749.3 | 133.4 | 412.8 | 495.3 | – | – | 16 | 60.5 | 2-1/4 | 635 | – |
| 16 | 825.5 | 146.1 | 469.9 | 552.5 | – | – | 16 | 66.5 | 2-1/2 | 704.9 | – |
| 18 | 914.4 | 162.1 | 533.4 | 596.9 | – | – | 16 | 73.2 | 2-3/4 | 774.7 | – |
| 20 | 984.3 | 177.8 | 584.2 | 641.4 | – | – | 16 | 79.2 | 3 | 831.9 | – |
| 24 | 1168.4 | 203.2 | 692.2 | 762 | – | – | 16 | 91.9 | 3-1/2 | 990.6 | – |
Why Astroforge Fitting Industries
Quality Products:
- Raw Materials are adeuately tested
- Conformaity to ASTM, ASME, DIN, EN, JIS.
- Marking, Heat Number. Specificatios
- 100% Radiography Test Report
- Third Party Inspection, Buyer Inspection
Value Added Services:
- Epoxy & fbe coating
- Hot dipped galvanizing.
- Sand blasting
- Electro polish or other special finishes
- Custom shape cutting, fabrication services
- Threading, soldering
Manufacturing Expertise:
- Custom size flanges
- High quality Industrial Flanges manufacturer.
- Accurate dimensions
- Products with unifrom wall thickness
- We use top quality raw materials
- Over 10 years of manufacturing experience
Slip On Flanges Materials
Most common materials used in the production of Slip On Flanges are Carbon Steel, Stainless Steel, Duplex Steel, Nickel Alloys. Complete list of grades, materials, and manufacturing standards are given below.
Carbon Steel Slip On Flanges:
- High Temperature Carbon Steel ASTM A105: A53, A106, API 5L
- Low Temperature Carbon Steel ASTM A350: LF1, LF2, LF3
- High Yield Carbon Steel ASTM A694: F42, F52, F60, F65
Alloy Steel Slip On Flanges:
Alloy Steel ASTM A182: F5, F9, F11, F22, F1, F5/F5a, F91
Stainless Steel Slip On Flanges:
Stainless Steel ASTM A182: F304, F304H, F304L, F304N, F304LN, F309H, F310, F310H, F310MoLN, F316, F316H, F316L, F316N, F316LN, F316Ti, F317, F317L, F321, F321H, F347, F347H, F348, F348H, 904L
Duplex Steel Slip On Flanges:
- Duplex Steel ASTM A182: Duplex 2205 (UNS S31803 – UNS S32205)
- Super Duplex ASTM A182: UNS S32750 – UNS S32760
Nickel Alloy Slip On Flanges:
- ASTM B160: Nickel 200 Flange | Nickel 201
- ASTM B166: Inconel 600 Flange
- ASTM B564: Inconel 625 Flange
- ASTM B425: Incoloy 800 Flange
- ASTM B564: Incoloy 825 Flange
- ASTM B564: Monel K400 Flange | Monel 400
- ASTM B564: Hastelloy C276 Flange | Hastelloy B, Hastelloy D, Hastelloy C-276, Hastelloy G
ANSI B16.5 Slip On Flanges Manufacturing Process
Slip On Flanges Manufacturing Process
ASME B16.47 Slip On Flanges Application Industries
• Refineries
• Food Processing & Dairy
• Oil and Gas Industry
• Off-Shore Oil Drilling Companies
• Pharmaceutical Equipment
• Pulp & Paper Industry
• Power Generation
• Specialty Chemicals
• Sea Water Equipment
• Gas Processing
• Chemical Equipment
• Heat Exchangers
• Petrochemicals
• Pharmaceuticals
• Condensers
ASME B16.47 / ANSI B16.5 Slip On Flanges Application Industries
ASME B16.47 / ANSI B16.5 Slip On Flanges Inspection
Our qualified inspection engineer performed inspection on Slip On Flanges based on reference standards of ASME B31.1, B31.3, B16.5, ASME II , V , VIII , IX , DIN, AS/NZ standards etc. A visual test performed to identify surface porosity, cracks, and open structure defects. A dimensional inspection performed to confirm that the different types of flange, in this case its Slip on Flange, Raised Face Slip on Flange, Flat Face Slip on Flange, etc. are manufactured according to the ASME Specification, that specifies the dimensions and indicates the design tolerances. A tensile test is conducted to test the yield strength, the tensile strength, and the elongation restrictions. A hardness test is conducted to check micro-hardness and surface hardness to confirm the acid environment performance and material performance. Magnetic particle inspection is performed to detect locating surface and near subsurface discontinuities in ferromagnetic materials, if some surface cracks, folds, thrust fault, pit or gas hole.
ANSI B16.5 Slip On Flanges Packing & Forwarding
We follow the packing procedure of Slip On Flanges to insure damage free delivery of BS10 Slip On Flange to our valuable customers in India and overseas. usually the packing way include wooden pallet, wooden box, iron & steel pallet, iron & steel cage etc. Because of the normal wooden pallets or wooden boxes have to do fumigation treatment, we choose plywood box or case or plywood pallet to pack Series A and Series B Slip On Flange without fumigation treatment. Whatever plywood or iron & steel packing way, we make sure that it must be strong, seaworthy, waterproof. All details of ASME B16.5 Slip On Flange are also stick with flanges packing so that it can be easy to understand and we insure that packing can ease the process of loading and unloading of goods.
ANSI B16.5 Slip On Flanges Packing & Forwarding
ASME B16.5 Slip On Flanges Export & Supply to below mentioned Countries
MIDDLE EAST: Saudi Arabia (KSA), United Arab Emirates (UAE), Iran, Iraq, Jordan, Qatar, Bahrain, Oman, Kuwait, Turkey, Yemen, Syria, Cyprus.
ASIA: Malaysia, India, Taiwan, Cambodia, Singapore, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar.
SOUTH AMERICA: Venezuela, Argentina, Bolivia, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Brazil, Chile.
AFRICA: South Africa, Nigeria, Algeria, Angola, Libya, Egypt, Gabon, Sudan, Equatorial Guinea, The Republic Of Congo.
NORTH AMERICA: USA, Canada, Mexico, Panama, Costa Rica, Puerto Rico, Trinidad And Tobago, Jamaica, Bahamas, Denmark.
EUROPE: UK, Netherlands, Russia, Norway, Germany, France, Italy, Spain, Ukraine, Belgium, Greece, Hungary, Albania, Austria, Finland, Ireland, Croatia, Slovenia, Malta, Switzerland, Slovakia, Czech Republic, Portugal.
ASME B16.5 Slip On Flanges Export & Supply to below Mentioned Cities
Mumbai, Thane, Navi Mumbai, Pune, New Delhi, Secunderabad, Gimhae-si, Haryana, Colombo, Lahore, Thiruvananthapuram, Milan, Moscow, Dallas, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Petaling Jaya, Ernakulam, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, Vung Tau, Al Khobar, Atyrau, Lagos, Ulsan, Faridabad, Houston, Hanoi, Toronto, Hong Kong, Rajkot, Bengaluru, Chennai, Surat, New York, Caracas, Howrah, Sydney, Ahvaz, Karachi, Algiers, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, Chiyoda, Dubai, Seoul, Hyderabad, Singapore, Doha, Jeddah, Manama, Montreal, Brisbane, Los Angeles, Ankara, Ho Chi Minh City, Bhopal, Mexico City, Ludhiana, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, London, Muscat, Edmonton, Busan, Visakhapatnam, Bogota, Melbourne, Madrid, La Victoria, Granada, Courbevoie, Al Jubail, Port-of-Spain.
