Swage Nipple manufacturer in India
Stainless Steel Threaded Swage Nipple Dimensions, ASME B16.11 Threaded Eccentric Swage Nipple Supplier
Concentric Swage Nipple, Swage Nipple Threaded Both Ends, Swage Nipple Threaded One End, Threaded Swage Nipple Weight

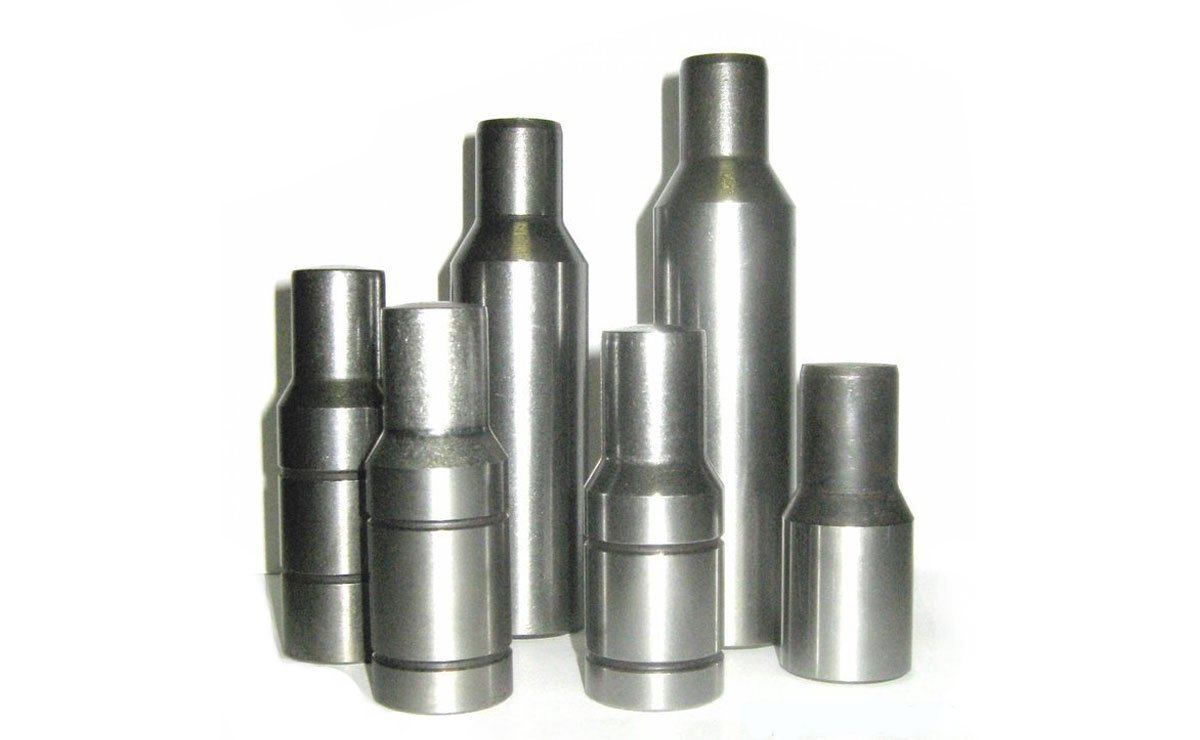

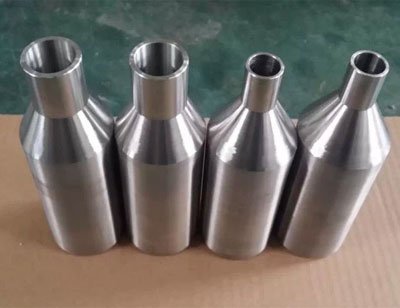

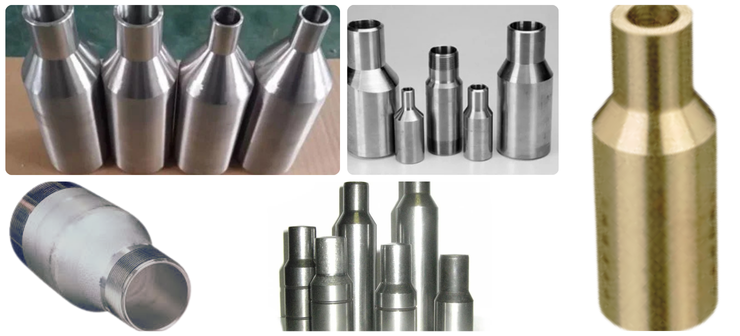

What is Threaded Swage Nipple?
All swage nipples manufactured by Adco Forge And Fitting Pvt Ltd are either manufactured from seamless pipe or bar material and have suitable working pressure equivalent to straight seamless pipes. We use high quality raw materials (steel pipes, bar stock) for manufacturing stainless steel swage nipples and carbon steel swage nipples. The raw materials we use are fully traceable to the mill source through our MTR reports. Our products are manufactured as per customer specifications and in accordance with international standards including American Standard (ASTM/ANSI), the British Standard (BS), and the DIN/European standard. NPT threads on Swage Nipples conform to ANSI/ASME B1.20.1.Our swage nipple products are supplied with EN 10204 3.1 Test Certification, with complete details on the chemical and physical properties of the materials. They are permanently marked with size, schedule, grade, and heat code.
Swage Nipples MSS-SP-95 Design Specification – Dimensional Standard for Stainless Steel, Carbon Steel, Alloy Steel Swage Nipples
Swage Nipples BS3799 Design Specification – Dimensional Standard for Stainless Steel, Carbon Steel, Alloy Steel Swage Nipples
Threaded Pipe Nipple Specification
Threaded Swage Nipple Standrad
| Size | 1/8” to 8”, DN8 to DN200 |
| Type | Concentric Swage Nipples, Eccentric Swage Nipples |
| Dimensions | MSS SP-95-2006, BS 3799 |
| Raw Materials | A106 Gr. B, A105/A105N, A182 304/304L , A182 316/316L , A312 304/304L, Duplex, A312 316/316L, A350-LF2, Alloy Steel |
| Material Specifications | ASTM A105, A350 LF2, ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91) |
| Connection Ends | PBE: Plain both ends, BBE: Bevel both ends, TBE: Thread both ends PSE: Plain small end, BSE: Bevel small end, TSE: Thread small end PLE: Plain large end, BLE: Bevel large end, TLE: Thread large end Thickness: Standard, Extra Heavy, Schedule 160, or Double Extra Heavy |
| Ends | Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification |
| Test Certificates | EN 10204 3.1, Raw Material Certificates Available, Destructive & Non Destructive Testing (NDT) Reports from NABL Approved Labs |
| Material Finish | Electro-Galvanized Coating, Black Finish, Blackodising Finish, Sand Blasting, or Pickled Finish in case of Stainless Steel Swage Nipples |
ASME B16.11 Threaded Swage Nipple Dimensions Standrad
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
Threaded Swage Nipple Material
ASME B16.11 Stainless Steel Forged Threaded Swage Nipple :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Swage Nipple :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel ASME B16.11 Forged Threaded Swage Nipple:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
ASME B16.11 Alloy Steel Forged Threaded Swage Nipple:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
ASME B16.11 Copper Alloy Steel Forged Threaded Swage Nipple: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded ASME B16.11 Swage Nipple:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Frequently Asked Questions
Concentric Swage Nipples have a central alignment, while Eccentric ones are offset, which is crucial for specific piping systems.
Threads on Swage Nipples, such as NPT, conform to ANSI/ASME B1.20.1, ensuring a reliable and secure fit.
End connections include Plain Both Ends (PBE), Bevel Both Ends (BBE), and Thread Both Ends (TBE), among others.
Swage Nipples can have finishes like Electro-Galvanized Coating, Black Finish, Blackodising, Sand Blasting, or Pickled Finish for stainless steel.
Swage Nipples come with EN 10204 3.1 Test Certification, detailing the chemical and physical properties of the materials used.
The two main types of Swage Nipples are Concentric and Eccentric. They can be threaded or plain on either end.
A Swage Nipple is a pipe fitting used to connect two pipes of different sizes. It’s manufactured from seamless pipe or bar material and ensures suitable working pressure.
Swage Nipples are made from various materials including stainless steel, carbon steel, alloy steel, and nickel alloys, meeting international standards like ASTM and ASME.
Swage Nipples come in sizes ranging from 1/8” to 8”, suitable for different industrial applications.
Swage Nipples conform to standards like ASME B16.11, MSS SP-95, and BS3799, ensuring quality and dimensional accuracy.
