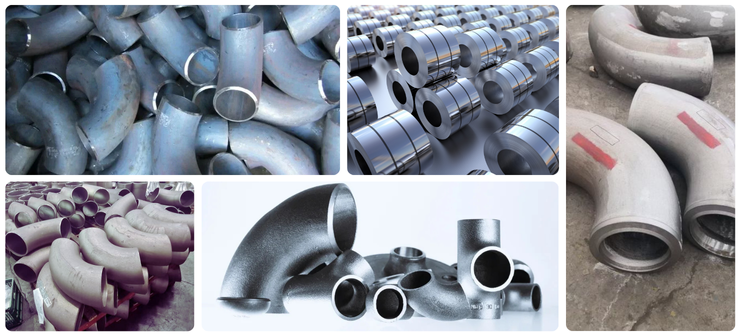

Alloy Steel Buttweld Fittings
Alloy Steel Buttweld Fittings are widely recognized for their strength, durability, and superior resistance to pressure and temperature fluctuations. Designed to connect pipes securely and withstand harsh environments, these fittings are an essential part of industries such as oil & gas, power generation, chemical processing, refineries, and petrochemicals. Their unique composition of carbon, manganese, chromium, molybdenum, and silicon makes them exceptionally strong while maintaining excellent toughness.
Available in multiple grades under the ASTM A234 standard—such as WP5, WP9, WP11, WP22, and WP91—these fittings are engineered to meet diverse industrial needs. From elbows, tees, reducers, and caps to customized buttweld solutions, alloy steel fittings provide leak-proof, reliable, and long-lasting performance in both low and high-temperature applications.
Chemical Composition of Alloy Steel Buttweld Fittings
The effectiveness of alloy steel fittings depends on their chemical makeup, which enhances their mechanical properties and corrosion resistance. Below is an overview of their chemical characteristics:
General Composition
Carbon (C): up to 0.28%
Manganese (Mn): 0.30–0.90%
Silicon (Si): 0.10–0.50%
Phosphorus (P): max 0.045%
Sulfur (S): max 0.045%
Molybdenum (Mo): 0.44–0.65%
Grade-Specific Composition
A234 WP5: C ≤0.15%, Cr 4–6%, Mo 0.44–0.65%
A234 WP9: C ≤0.15%, Cr 8–10%, Mo 0.90–1.10%
A234 WP11: C 0.05–0.20%, Cr 1–1.5%, Mo 1–1.5%
A234 WP22: C 0.05–0.15%, Cr 2–2.5%, Mo 0.87–1.13%
A234 WP91: C 0.05–0.15%, Cr 2–2.5%, Mo 0.87–1.13%
The varying ratios of chromium and molybdenum across grades provide different levels of strength, corrosion resistance, and temperature tolerance. For example, WP91 is ideal for high-pressure boilers and power plants, while WP11 and WP22 are often used in refineries and petrochemical plants.
Mechanical Properties of Alloy Steel Buttweld Fittings
These fittings are engineered for mechanical stability and durability. Their properties make them suitable for demanding applications.
General Mechanical Properties
Tensile Strength: 220 MPa min
Yield Strength: 415 MPa min
Elongation: 20% min
Hardness: 121–174 HB
Grade-Specific Mechanical Properties
A234 WP5: Yield ≥205 MPa, Tensile 415–585 MPa, Elongation ≥20%
A234 WP9: Yield ≥585 MPa, Tensile ≥380 MPa, Elongation ≥30%
A234 WP11: Yield ≥205 MPa, Tensile 415–585 MPa, Elongation ≥20%
A234 WP22: Yield ≥205 MPa, Tensile 415–585 MPa, Elongation ≥20%
A234 WP91: Yield ≥415 MPa, Tensile ≥590 MPa, Elongation ≥20%
These properties highlight the balance of strength and flexibility—ensuring that the fittings can withstand high pressures, thermal cycling, and heavy loads while maintaining structural integrity.
Types of Alloy Steel Buttweld Fittings
Alloy steel buttweld fittings come in various types to serve different piping requirements:
Elbows (45°, 90°, 180°) – Change the direction of flow efficiently.
Tees & Crosses – Distribute flow into multiple pipelines.
Reducers (Concentric & Eccentric) – Connect pipes of varying diameters.
Caps & Stub Ends – Seal pipe ends and connect with lap joint flanges.
Bends & Laterals – Used for specialized flow direction changes.
Each type is manufactured with precision to ensure leak-proof and stress-free connections in pipelines.
Key Features of Alloy Steel Buttweld Fittings
High Strength & Durability – Perform efficiently under extreme pressure.
Heat & Corrosion Resistance – Chromium and molybdenum improve toughness.
Excellent Weldability – Easy to fabricate and install.
Dimensional Accuracy – Manufactured to international standards (ASTM, ASME, ANSI).
Long Service Life – Reduced maintenance and replacement costs.
Applications of Alloy Steel Buttweld Fittings
Due to their exceptional performance, alloy steel buttweld fittings are used across various industries, including:
Oil & Gas Industry – For pipelines carrying crude, natural gas, and refined products.
Petrochemical Plants – In processing units exposed to corrosive chemicals.
Power Generation – Especially in high-temperature boilers and heat exchangers.
Refineries – For handling hydrocarbons under fluctuating pressure and temperature.
Marine & Offshore – In pipelines subjected to seawater and pressure variations.
Fertilizer & Chemical Plants – For transporting acids, alkalis, and chemical solutions.
Advantages of Alloy Steel Buttweld Fittings
Withstand high-pressure and high-temperature environments.
Superior resistance to oxidation, scaling, and corrosion.
Wide availability in multiple grades for different applications.
Strong and leak-proof joints for long-term reliability.
Cost-effective compared to other exotic alloys.
Conclusion
Alloy Steel Buttweld Fittings are indispensable in industries that demand strength, corrosion resistance, and heat tolerance. Manufactured in grades like WP5, WP9, WP11, WP22, and WP91, these fittings offer outstanding mechanical properties and durability. Their ability to perform under high stress, fluctuating temperatures, and corrosive conditions makes them a preferred choice for power plants, oil refineries, petrochemical units, and chemical industries.
By combining precise chemical composition, superior mechanical strength, and versatile design options, alloy steel buttweld fittings ensure safe, reliable, and efficient piping systems that last for years.
Connect with us
Quality Pipe Fitting Solutions
Reliable, durable, and precise pipe fittings for every industrial need.
Buttweld Fittings
High-quality buttweld fittings for secure, leak-proof pipe connections.
Explore more
Flanges
Durable industrial flanges for reliable piping connection and pressure sealing.
Explore more
Threaded Fittings
Precision threaded fittings for secure, easy, and leak-resistant pipe connections.
Explore more
Socket Weld Fittings
Robust socket weld fittings for high-pressure, leak-proof pipe connections.
Explore more
Pre Fabricated Fittings
Custom pre-fabricated fittings for efficient, accurate, and time-saving piping installations.
Explore more
Fastners
High-performance fasteners for strong, reliable, and durable industrial connections.
Explore more
Pipes & Tubes
Premium pipes and tubes for efficient flow and structural reliability in industrial systems.
Explore more
Spades & Ring Spacers
Spades and ring spacers for safe pipeline isolation and maintenance operations.
Explore moreFAQs - Alloy Steel Buttweld Fittings
Alloy Steel Buttweld Fittings are pipe fittings made from alloy steel that connect, change direction, or terminate pipelines. They are known for their high strength, durability, and ability to withstand extreme pressure and temperature conditions.
They are primarily manufactured under ASTM A234 specification, with grades such as WP5, WP9, WP11, WP22, and WP91, in compliance with ASME/ANSI standards.
The common types include elbows, tees, reducers, caps, bends, crosses, and stub ends, each serving specific functions in piping systems.
They offer superior strength, high-temperature and pressure resistance, corrosion resistance, excellent weldability, and long service life.
These fittings are widely used in oil & gas, petrochemicals, refineries, chemical processing, power generation, and marine & offshore industries.
The difference lies in their chemical composition and mechanical properties. For example, WP91 is designed for high-pressure boilers, while WP11 and WP22 are more suited for refineries and petrochemical applications.
Yes, the presence of chromium and molybdenum enhances their resistance to oxidation, corrosion, and scaling in high-temperature environments.
They are joined through welding, which ensures strong, leak-proof, and permanent connections in critical piping systems.
They are available in a wide range of sizes and thicknesses, generally from ½” to 48” (and custom sizes if required), to suit different piping requirements.
Compared to carbon steel or stainless steel, alloy steel provides better strength, higher thermal stability, and cost-effectiveness for demanding industrial applications.
