Alloy Steel Forged Fittings
Alloy steel forged fittings are an essential component in modern piping systems, designed to withstand extreme conditions such as high pressure, elevated temperatures, and corrosive environments. These fittings are manufactured by forging, which involves shaping the alloy steel under high pressure to improve its strength, durability, and grain structure. As a result, alloy steel forged fittings are widely preferred in industries like oil & gas, petrochemicals, refineries, power generation, shipbuilding, and chemical processing, where both strength and resistance to wear and tear are crucial.
Overview of Alloy Steel Forged Fittings
Alloy steel is a type of steel that contains significant amounts of elements such as chromium, molybdenum, nickel, and manganese. These alloying elements improve the material’s mechanical and chemical properties, making it superior to carbon steel in terms of toughness, resistance to corrosion, and performance under high stress. Forged fittings made from alloy steel offer a long service life, even under conditions where conventional materials would fail.

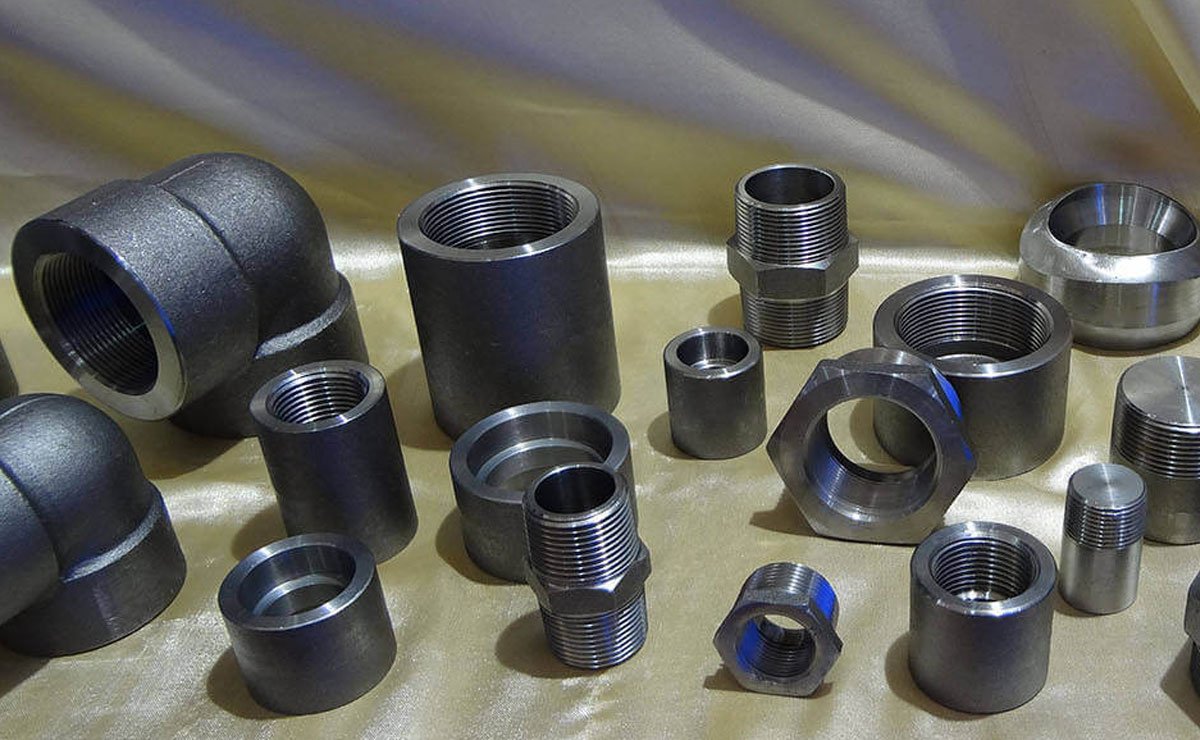

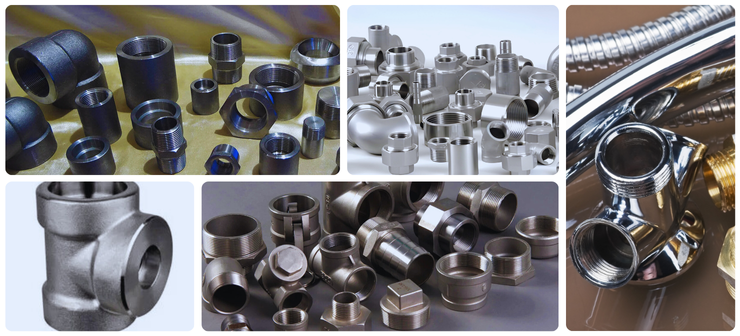

These fittings are typically available in different forms such as socket weld fittings, threaded fittings, elbows, tees, couplings, reducers, unions, plugs, crosses, and bushings. Their precise design ensures leak-proof connections, efficient flow, and safe handling of fluids in pipelines.
Chemical Composition of Alloy Steel Forged Fittings
The properties of alloy steel forged fittings are determined by their chemical composition. Different grades such as F1, F5, F9, F11, F22, and F91 have specific combinations of carbon, manganese, silicon, chromium, molybdenum, and other elements.
Chromium (Cr): Provides excellent resistance to oxidation and corrosion while enhancing strength at high temperatures.
Molybdenum (Mo): Increases creep resistance and high-temperature strength.
Carbon (C): Balances hardness and strength with ductility.
Manganese (Mn) & Silicon (Si): Improve toughness, deoxidation, and weldability.
Phosphorus (P) & Sulfur (S): Maintained at low levels to prevent brittleness.
Each grade offers specific advantages. For example, F5 and F9 are designed for high-pressure and high-temperature applications in power plants, whereas F22 and F91 are used in refineries and thermal systems due to their excellent creep resistance.
Mechanical Properties of Alloy Steel Forged Fittings
Alloy steel forged fittings exhibit impressive mechanical properties that make them highly reliable for demanding environments:
High Yield Strength and Tensile Strength: These fittings can withstand heavy loads and internal pressures without deforming or cracking.
Excellent Elongation: Ensures ductility and the ability to handle stress without sudden failure.
Hardness: Provides wear resistance, making them suitable for abrasive applications.
Temperature Resistance: Can perform effectively in both cryogenic and elevated temperature environments.
For instance, F1 and F5 grades exhibit yield strength of around 485 MPa, while F91 provides even greater tensile strength of up to 585 MPa, making it suitable for ultra-critical applications.
Applications of Alloy Steel Forged Fittings
Due to their exceptional strength and versatility, alloy steel forged fittings are used in a wide range of industries:
Power Generation Plants: For steam lines, boilers, and turbine systems that operate at very high temperatures and pressures.
Oil & Gas Industry: Widely used in refineries, offshore drilling platforms, and pipelines that handle corrosive fluids.
Petrochemical Plants: For transporting chemicals and gases where resistance to oxidation and chemical attack is vital.
Shipbuilding & Marine Applications: Suitable for seawater systems and high-stress piping networks.
Nuclear Industry: Used in reactors and other critical systems requiring materials with excellent creep strength and durability.
Advantages of Alloy Steel Forged Fittings
- Superior Strength: Provides durability under high pressure and thermal conditions.
Corrosion & Oxidation Resistance: Withstands corrosive media such as acids, gases, and salts.
Leak-Proof Performance: Precision forging ensures tight, secure connections.
Long Service Life: Reduces the need for frequent replacements and maintenance.
Versatility: Available in multiple grades and configurations to suit diverse industrial requirements.
Standards and Quality Assurance
Alloy steel forged fittings are manufactured according to international standards such as ASME, ASTM, ANSI, DIN, and BS to ensure quality, safety, and reliability. Reputable manufacturers perform rigorous testing including hydrostatic tests, hardness tests, tensile tests, and non-destructive examinations to guarantee defect-free fittings.
Conclusion
Titanium flanges are more than just pipe connectors—they are critical components that ensure safety, reliability, and efficiency in some of the world’s most demanding industries. With Grade 2 offering outstanding corrosion resistance and ductility, and Grade 5 delivering superior mechanical performance, titanium flanges can meet the needs of a wide variety of applications.
Whether in aerospace engineering, marine environments, chemical plants, or power generation, titanium flanges provide the perfect balance of strength, lightness, and long-term durability, making them one of the most trusted solutions in modern industry.
Connect with us
Quality Pipe Fitting Solutions
Reliable, durable, and precise pipe fittings for every industrial need.
Buttweld Fittings
High-quality buttweld fittings for secure, leak-proof pipe connections.
Explore more
Flanges
Durable industrial flanges for reliable piping connection and pressure sealing.
Explore more
Threaded Fittings
Precision threaded fittings for secure, easy, and leak-resistant pipe connections.
Explore more
Socket Weld Fittings
Robust socket weld fittings for high-pressure, leak-proof pipe connections.
Explore more
Pre Fabricated Fittings
Custom pre-fabricated fittings for efficient, accurate, and time-saving piping installations.
Explore more
Fastners
High-performance fasteners for strong, reliable, and durable industrial connections.
Explore more
Pipes & Tubes
Premium pipes and tubes for efficient flow and structural reliability in industrial systems.
Explore more
Spades & Ring Spacers
Spades and ring spacers for safe pipeline isolation and maintenance operations.
Explore moreFAQs - Alloy Steel Forged Fittings
Alloy steel forged fittings are used in piping systems requiring high strength, corrosion resistance, and durability under extreme conditions like oil, gas, petrochemical, and power industries.
Industries such as oil and gas, power generation, refineries, shipbuilding, petrochemicals, and nuclear plants rely heavily on alloy steel forged fittings for strength and reliability.
Popular grades include F1, F5, F9, F11, F22, and F91, each designed for specific high-pressure, high-temperature, and corrosion-resistant industrial applications.
They are produced by forging alloy steel under high pressure, enhancing grain structure, strength, and toughness compared to cast fittings, ensuring superior performance and durability.
Types include elbows, tees, couplings, reducers, unions, crosses, plugs, bushings, socket weld, and threaded fittings, designed for diverse piping system requirements.
They provide high tensile strength, yield strength, excellent elongation, creep resistance, and hardness, ensuring durability and leak-proof performance in demanding piping applications.
Yes, alloy steel forged fittings resist corrosion, oxidation, and chemical attack due to elements like chromium and molybdenum, making them ideal for harsh environments.
Alloy steel forged fittings are manufactured under ASME, ASTM, ANSI, DIN, and BS standards, ensuring global quality, safety, precision, and reliable performance.
Advantages include high strength, corrosion resistance, thermal stability, long service life, and leak-proof connections, making them cost-effective and versatile for multiple industries.
