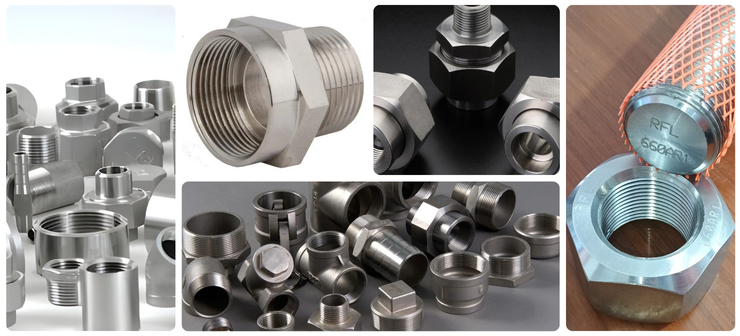

Monel Forged Fitting
Monel Forged Fittings are precision-engineered components manufactured from high-performance nickel-copper alloys, primarily Monel 400 and Monel K500. Known for their outstanding corrosion resistance, durability, and mechanical strength, these fittings are widely used in industries where reliability under extreme conditions is a must. Forged fittings are designed to connect, control, or redirect the flow in piping systems while withstanding high pressure and temperature environments.
Available in a wide range of types such as elbows, tees, couplings, unions, caps, crosses, and plugs, Monel forged fittings ensure leak-proof, strong connections and provide long-lasting performance in critical applications.
Chemical Composition
The superior performance of Monel forged fittings comes from their unique alloy composition:
Monel 400: Contains a minimum of 63% nickel, combined with 28–34% copper, small amounts of manganese, iron, and silicon. This composition provides excellent resistance to seawater, steam, salts, and acids, making it ideal for marine and chemical environments.
Monel K500: A strengthened alloy with a similar nickel-copper base but enhanced with aluminum and titanium for greater hardness and strength. It maintains excellent corrosion resistance while offering superior wear resistance and fatigue strength compared to Monel 400.
Both grades are highly resistant to stress corrosion cracking, pitting, and oxidation, even in aggressive conditions.
Mechanical Properties
Monel forged fittings exhibit excellent mechanical strength and toughness across a wide temperature range:
Monel 400:
Tensile Strength: 550 MPa (80,000 psi)
Yield Strength: 240 MPa (35,000 psi)
Elongation: 40%
Density: 8.8 g/cm³
Melting Point: 1350°C (2460°F)
Monel K500:
Tensile Strength: 1100 MPa (160,000 psi)
Yield Strength: 790 MPa (115,000 psi)
Elongation: 20%
Density: 8.44 g/cm³
Melting Point: 1350°C (2460°F)
These mechanical values highlight the alloy’s ability to perform efficiently under high stress, high pressure, and corrosive environments.
Advantages of Monel Forged Fittings
Exceptional Corrosion Resistance – Performs well in seawater, brine, alkalis, and acidic environments.
High Strength & Durability – Withstands mechanical stress and fatigue in demanding applications.
Temperature Resistance – Maintains toughness in both cryogenic and elevated temperature conditions.
Leak-Proof Joints – Forged for maximum reliability in high-pressure piping systems.
Long Service Life – Resistant to pitting, crevice corrosion, and stress corrosion cracking.
Applications
Due to their superior strength and resistance to harsh conditions, Monel Forged Fittings are used in:
Marine & Offshore Engineering – Pump shafts, seawater valves, and heat exchangers.
Chemical & Petrochemical Plants – Processing equipment exposed to acids and alkalis.
Oil & Gas Industry – Refining units, pipelines, and offshore platforms.
Power Generation – Boiler feedwater and nuclear plant systems.
Aerospace & Defense – High-strength components requiring durability and corrosion resistance.
Conclusion
Monel Forged Fittings are the perfect choice for industries that demand strength, durability, and corrosion resistance in extreme environments. Whether in offshore platforms, chemical processing plants, or aerospace applications, Monel 400 and Monel K500 forged fittings ensure long-term reliability, safety, and performance.
Connect with us
Quality Pipe Fitting Solutions
Reliable, durable, and precise pipe fittings for every industrial need.
Buttweld Fittings
High-quality buttweld fittings for secure, leak-proof pipe connections.
Explore more
Flanges
Durable industrial flanges for reliable piping connection and pressure sealing.
Explore more
Threaded Fittings
Precision threaded fittings for secure, easy, and leak-resistant pipe connections.
Explore more
Socket Weld Fittings
Robust socket weld fittings for high-pressure, leak-proof pipe connections.
Explore more
Pre Fabricated Fittings
Custom pre-fabricated fittings for efficient, accurate, and time-saving piping installations.
Explore more
Fastners
High-performance fasteners for strong, reliable, and durable industrial connections.
Explore more
Pipes & Tubes
Premium pipes and tubes for efficient flow and structural reliability in industrial systems.
Explore more
Spades & Ring Spacers
Spades and ring spacers for safe pipeline isolation and maintenance operations.
Explore moreFAQs - Monel Forged Fitting
Monel forged fittings are used to connect, control, or redirect fluid flow in piping systems, ensuring leak-proof, durable, and strong performance in high-pressure environments.
The two primary grades are Monel 400, known for corrosion resistance, and Monel K500, offering higher strength, wear resistance, and fatigue strength.
Monel forged fittings deliver superior seawater and acid resistance, higher tensile strength, and longer service life compared to standard stainless steel alloys in extreme conditions.
Monel 400 contains 63% nickel and 28–34% copper, while Monel K500 adds aluminum and titanium for enhanced hardness, strength, and wear resistance.
Monel 400 has a tensile strength of 550 MPa, yield strength of 240 MPa, elongation of 40%, and excellent toughness in demanding environments.
Monel K500 provides 1100 MPa tensile strength, 790 MPa yield strength, and superior wear resistance, while maintaining excellent corrosion resistance in seawater and chemical applications.
Yes, Monel alloys resist seawater, brine, and salt-induced corrosion, making them ideal for marine engineering, offshore drilling platforms, and desalination plant piping systems.
Monel forged fittings perform effectively in cryogenic to high-temperature environments, with a melting point of approximately 1350°C, ensuring stability under extreme operating conditions.
They include elbows, tees, couplings, unions, crosses, caps, and plugs, offering versatile solutions for industrial piping systems requiring strength, durability, and leak-proof performance.
Marine, chemical, oil and gas, aerospace, and power generation industries widely use Monel forged fittings for their unmatched corrosion resistance, mechanical strength, and long service life.
