Nickel Forged Fittings
Nickel Forged Fittings are precision-engineered components widely used in industries where high strength, corrosion resistance, and durability are critical. Made from premium grades like Nickel 200 and Nickel 201, these fittings are designed for demanding environments such as chemical processing, marine systems, food production, pharmaceuticals, and power plants.
Forged fittings are produced by heating nickel alloy billets and shaping them under high pressure, ensuring superior strength, leak-proof performance, and resistance to mechanical stress. This makes them an excellent choice for high-pressure piping systems where reliability and long service life are paramount.
Chemical Composition of Nickel Forged Fittings
The chemical balance of nickel ensures stability and corrosion resistance. Both Nickel 200 and Nickel 201 are high-purity materials with slight differences in carbon content:
Nickel 200
C: 0.15% max
Cu: 0.25% max
Si: 0.35% max
Mn: 0.35% max
S: 0.01% max
Fe: 0.40% max
Ni: 99.0% min
Nickel 201
C: 0.02% max
Mn: 0.35% max
Si: 0.35% max
S: 0.01% max
Cu: 0.25% max
Fe: 0.40% max
Ni: 99.0% min
Nickel 200 is a commercially pure wrought nickel, while Nickel 201, with its lower carbon content, is highly resistant to graphitization at elevated temperatures, making it ideal for high-temperature applications.
Mechanical Properties of Nickel Forged Fittings
Both Nickel 200 and Nickel 201 deliver outstanding mechanical performance, ensuring toughness and reliability in industrial systems:
Nickel 200
Density: 8.9 g/cm³
Tensile Strength: 67,000 psi (462 MPa)
Yield Strength (0.2% Offset): 21,500 psi (148 MPa)
Melting Point: 1446 °C (2635 °F)
Elongation: 45%
Nickel 201
Density: 8.9 g/cm³
Tensile Strength: 67,000 psi (462 MPa)
Yield Strength (0.2% Offset): 21,500 psi (148 MPa)
Melting Point: 1446 °C (2635 °F)
Elongation: 45%
This combination of strength, ductility, and resistance to thermal expansion makes nickel forged fittings ideal for critical applications.
Key Features of Nickel Forged Fittings
High Corrosion Resistance – Performs well in caustic solutions, neutral salts, acids, and alkalis.
Superior Strength – Forging enhances toughness and durability under high pressure.
Excellent Ductility – Easy to fabricate, weld, and machine.
Thermal Stability – Maintains performance across wide temperature ranges.
Non-Magnetic – Suitable for specialized electronic and chemical applications.
Purity – Nickel’s non-contaminating properties make it safe for food and pharmaceuticals.

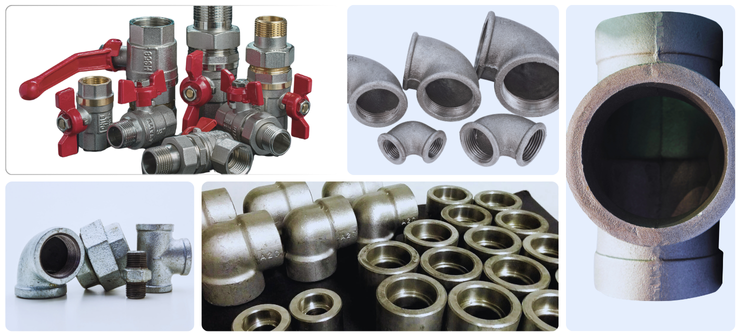

Types of Nickel Forged Fittings
Nickel forged fittings are available in different designs to meet diverse piping system requirements:
Socket Weld Fittings – For high-pressure systems requiring strong, leak-proof joints.
Threaded Fittings – Easy to assemble and dismantle, suitable for low to medium-pressure systems.
Common forged fitting shapes include:
Elbows (45° & 90°) – Change pipeline direction.
Tees & Crosses – Branch connections.
Reducers – Connect different pipe sizes.
Caps & Plugs – Seal the ends of piping systems.
Unions & Couplings – Allow easy disassembly for maintenance.
Industrial Applications
Nickel forged fittings are used extensively in industries that demand durability, reliability, and resistance to aggressive environments:
Chemical Processing Plants – Resistant to strong alkalis, caustic soda, and acid solutions.
Food & Beverage Industry – Non-toxic and ensures product purity.
Pharmaceuticals – Prevents contamination during drug manufacturing.
Power Generation – Used in condensers, heat exchangers, and turbine components.
Marine Engineering – Provides resistance against seawater corrosion.
Electronics & Aerospace – Excellent electrical conductivity and high thermal stability.
Advantages Over Other Alloys
Compared to stainless steel or copper alloys, Nickel 200/201 Forged Fittings offer:
Superior resistance to caustic and chloride environments.
Better electrical and thermal conductivity.
Longer service life, reducing maintenance costs.
Reliability in both high-temperature and cryogenic applications.
Why Choose Nickel Forged Fittings?
Nickel forged fittings provide a perfect combination of strength, purity, and corrosion resistance. The forging process enhances the grain structure of nickel, delivering superior durability compared to cast or fabricated fittings. With the choice between Nickel 200 for general use and Nickel 201 for higher temperature applications, industries can select fittings that best match their needs.
Conclusion
Nickel Forged Fittings are a vital part of modern piping systems, offering strength, corrosion resistance, and versatility across multiple industries. With their high nickel content, they ensure exceptional durability and long service life, even in the most aggressive environments.
Whether used in chemical plants, marine systems, power generation, or pharmaceuticals, nickel forged fittings deliver consistent performance, safety, and reliability. By combining superior mechanical properties with excellent corrosion resistance, they remain the preferred choice for industries worldwide.
Connect with us
Quality Pipe Fitting Solutions
Reliable, durable, and precise pipe fittings for every industrial need.
Buttweld Fittings
High-quality buttweld fittings for secure, leak-proof pipe connections.
Explore more
Flanges
Durable industrial flanges for reliable piping connection and pressure sealing.
Explore more
Threaded Fittings
Precision threaded fittings for secure, easy, and leak-resistant pipe connections.
Explore more
Socket Weld Fittings
Robust socket weld fittings for high-pressure, leak-proof pipe connections.
Explore more
Pre Fabricated Fittings
Custom pre-fabricated fittings for efficient, accurate, and time-saving piping installations.
Explore more
Fastners
High-performance fasteners for strong, reliable, and durable industrial connections.
Explore more
Pipes & Tubes
Premium pipes and tubes for efficient flow and structural reliability in industrial systems.
Explore more
Spades & Ring Spacers
Spades and ring spacers for safe pipeline isolation and maintenance operations.
Explore moreFAQs - Nickel Forged Fittings
Nickel forged fittings are used in piping systems requiring durability, corrosion resistance, and strength, serving industries like chemical processing, pharmaceuticals, marine, and power generation.
Nickel 200 offers excellent corrosion resistance, toughness, and high mechanical strength, making it suitable for general industrial applications requiring reliability in aggressive environments.
Nickel 201 has lower carbon content, providing superior resistance to graphitization at higher temperatures, making it ideal for high-temperature and specialized industrial applications.
They offer corrosion resistance, excellent mechanical strength, durability, ductility, thermal stability, and non-contamination properties, making them reliable for critical industrial applications.Which industries commonly use nickel forged fittings?Which industries commonly use nickel forged fittings?
Industries like chemical processing, food and beverages, pharmaceuticals, power plants, marine engineering, aerospace, and electronics widely use nickel forged fittings for their unmatched reliability.
Nickel forged fittings include socket weld and threaded designs, available as elbows, tees, reducers, plugs, caps, couplings, unions, and crosses for piping systems.
They are produced by heating nickel alloy billets and forging under pressure, enhancing strength, ductility, and leak-proof performance for high-pressure industrial systems.
Forged fittings have superior grain structure, toughness, and mechanical reliability compared to cast fittings, ensuring longer service life in demanding environments.
Yes, nickel forged fittings provide excellent resistance to seawater, brine, and chlorides, making them ideal for marine applications and offshore piping systems.
Their durability, corrosion resistance, and low maintenance requirements reduce replacement frequency, making nickel forged fittings a cost-effective solution for long-term industrial performance.
