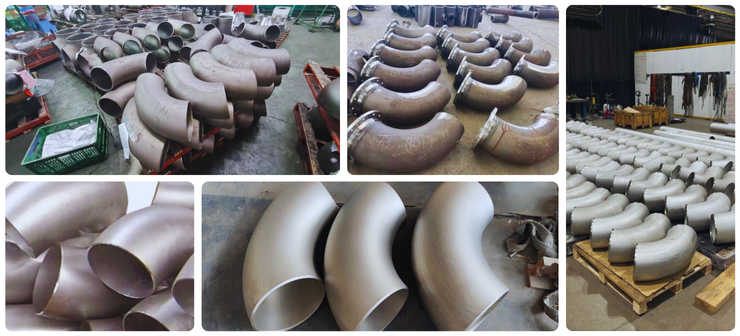

Titanium Buttweld Fittings
Titanium Buttweld Fittings are high-performance piping components designed for joining, branching, reducing, or redirecting flow in pipelines. Manufactured using superior-quality titanium alloys—mainly Grade 2 (Commercially Pure Titanium) and Grade 5 (Ti-6Al-4V)—these fittings are valued across industries for their lightweight strength, excellent corrosion resistance, and long service life.
With their robust properties, titanium fittings are widely used in aerospace, marine, chemical processing, oil & gas, desalination, medical, and power generation sectors. The buttweld design provides a smooth, leak-proof connection, ensuring high reliability even under extreme operating conditions.
Chemical Composition
The exceptional properties of titanium buttweld fittings stem from their chemical makeup:
Titanium Grade 2 (Commercially Pure Titanium)
Ti: 99.2% min
C: 0.1% max
N: 0.03% max
O: 0.25% max
Fe: 0.3% max
H: 0.015% max
Known for its outstanding corrosion resistance and high ductility, Grade 2 is used in seawater environments, chemical plants, and medical devices where purity and formability are critical.
Titanium Grade 5 (Ti-6Al-4V)
Ti: 90% min
Al: 6% min
V: 4% min
O: 0.2% max
Fe: 0.25% max
This alloy offers exceptional strength and toughness while retaining corrosion resistance. It is the most commonly used titanium alloy, particularly in aerospace and offshore applications where performance under stress is vital.
Mechanical Properties
Titanium Grade 2
Density: 4.5 g/cm³
Tensile Strength: 344 MPa (49,900 psi)
Yield Strength: 275 MPa (39,900 psi)
Melting Point: 1665 °C (3030 °F)
Elongation: 20%
Titanium Grade 5
Density: 4.43 g/cm³
Tensile Strength: 950 MPa (138,000 psi)
Yield Strength: 880 MPa (128,000 psi)
Melting Point: 1632 °C (2970 °F)
Elongation: 14%
These properties highlight why titanium fittings are chosen for applications that demand both strength and corrosion resistance. Grade 2 is ideal where ductility and corrosion protection are needed, while Grade 5 is the preferred choice for high-pressure, high-temperature conditions.
Key Benefits of Titanium Buttweld Fittings
Superior Corrosion Resistance – Performs exceptionally well in seawater, chlorides, acids, and other aggressive media.
Lightweight but Strong – Offers high strength-to-weight ratio compared to stainless steel or nickel alloys.
Biocompatible – Safe for medical and surgical applications due to its non-toxic nature.
Thermal Stability – Suitable for use in both cryogenic and elevated temperature conditions.
Long Service Life – Resistant to erosion, fatigue, and stress cracking, ensuring durability.
Smooth Flow Design – Buttweld joints minimize pressure loss and ensure streamlined flow inside pipelines.
Common Types of Titanium Buttweld Fittings
Elbows (45°, 90°, 180°) – Used for directional changes.
Tees & Crosses – Allow multiple branching connections.
Reducers (Concentric & Eccentric) – Connect pipes of different diameters.
Caps & Stub Ends – Used for sealing or terminating pipes.
Long Radius & Short Radius Fittings – Designed for different pressure and flow requirements.
Industrial Applications
Titanium buttweld fittings find widespread use across multiple industries:
Aerospace & Defense – For aircraft structures, engines, and hydraulic systems due to lightweight strength.
Marine & Offshore – In desalination, shipbuilding, and subsea pipelines where seawater resistance is crucial.
Chemical Processing – For equipment exposed to nitric, sulfuric, and hydrochloric acids.
Oil & Gas – In offshore rigs, refineries, and high-pressure pipeline systems.
Medical Industry – In implants, prosthetics, and surgical tools thanks to titanium’s biocompatibility.
Power Generation – For heat exchangers, condensers, and cooling systems.
Why Choose Titanium Over Other Alloys?
Stronger and lighter than stainless steel.
Immune to chloride-induced stress corrosion cracking.
Provides long-term cost savings due to minimal maintenance needs.
Performs exceptionally in both oxidizing and reducing environments.
Suitable for both industrial and medical-grade applications.
Conclusion
Titanium Buttweld Fittings offer a perfect combination of strength, corrosion resistance, and durability, making them indispensable in industries where failure is not an option. With Grade 2 providing outstanding corrosion protection and Grade 5 delivering superior mechanical strength, titanium fittings cater to a wide range of demanding applications.
Their ability to endure harsh chemicals, seawater, extreme temperatures, and mechanical stress ensures they remain a cost-effective and long-lasting choice for modern piping systems. From offshore platforms to aerospace engineering and even medical technology, titanium buttweld fittings guarantee reliability, safety, and efficiency.
